LAPP 55501981 55501981 SILVYN LGF-2-M 12x1,5 LAPP SILVYN LGF-2-M 12x1,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55501981 SILVYN LGF-2-M 12x1,5 LAPP SILVYN LGF-2-M 12x1,5

55501981

55501981

SILVYN LGF-2-M 12x1,5

LAPP

10 Pcs.

SILVYN LGF-2-M 12x1,5 SILVYN® LGF-2-M

Automation > Screw connection for protective metallic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A screw connection for protective metallic hose, registered as 55501981 SILVYN LGF-2-M 12x1,5 by Lapp, links protective tubing securely to junction points. Electrical installers choose these fittings to organize control wiring and guard against dust and mechanical abrasion. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose
  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

More info

▲

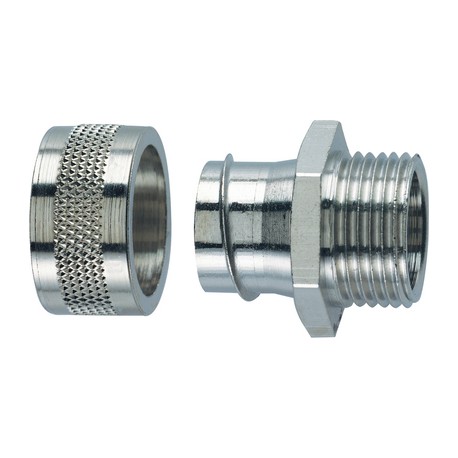

SILVYN® LGF-2-M is a nickel-plated brass conduit fitting for usage in fixed installations

Benefits

  • For fixed applications
  • High tensile strength
  • Space-saving

Application range

  • In combination with protective conduit:
  • SILVYN® LCC-2
  • SILVYN® LCCH-2
  • Applications with high mechanical stress
  • Outdoors

Product Make-up

  • Metric connection thread
  • Hexagonal collar
  • Cap nut

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

Norm references / Approvals

  • IEC EN 61386-23

Material

  • Nickel-plated brass

Protection rating

  • IP 54

Temperature range

  • -50°C to +300°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
