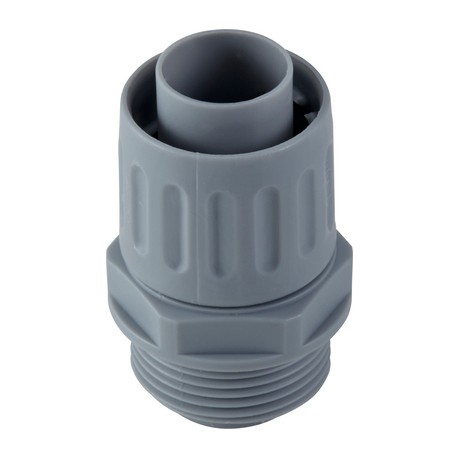

LAPP 55501420 55501420 SILVYN LKI-M 20x1,5 SGY LAPP SILVYN LKI-M 20X1.5 GY View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55501420 SILVYN LKI-M 20x1,5 SGY LAPP SILVYN LKI-M 20X1.5 GY

55501420

55501420

SILVYN LKI-M 20x1,5 SGY

LAPP

50 Pcs.

SILVYN LKI-M 20X1.5 GY SILVYN® LKI-M

Automation > Screw connection for protective plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Ensuring secure attachment for flexible protective tubing, the Lapp 55501420 screw connection for protective plastic hose supports reliable factory automation wiring. Plant engineers specify these parts to maintain continuous protection along complex cable runs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC001178
  • ETIM 5.0 Class-Description: Screw connection for protective plastic hose
  • ETIM 6.0 Class-ID: EC001178
  • ETIM 6.0 Class-Description: Screw connection for protective plastic hose

More info

▲

SILVYN® LKI-M - swivelling plastic conduit fitting

Swivelling upper part with integrated inner sleeve

Benefits

  • Fast and easy assembly
  • Vibration protection
  • High-tensile
  • Can be rotated

Application range

  • In combination with protective conduit:
  • SILVYN®FPS
  • SILVYN® FD-PU
  • Robot-building
  • For rotating applications

Product features

  • Smooth inner surface
  • Slim construction

Product Make-up

  • Metric connection thread
  • Swivelling upper part with integrated inner sleeve

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001178
  • ETIM 5.0 Class-Description: Screw connection for protective plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001178
  • ETIM 6.0 Class-Description: Screw connection for protective plastic hose

Colour delivered

  • Silver grey (RAL 7001)

Material

  • PP

Protection rating

  • IP 54

Temperature range

  • -10°C to +110°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
