View larger
Images are for illustrative purposes only. Please refer to data sheet for details
55501340 SILVYN USK-M 25x1,5 SGY LAPP SILVYN USK-M 25x1,5 SGY
55501340
55501340
SILVYN USK-M 25x1,5 SGY
LAPP
25 Pcs.
SILVYN USK-M 25x1,5 SGY
SILVYN® USK-M
Automation > Screw connection for protective plastic hose
SILVYN cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info

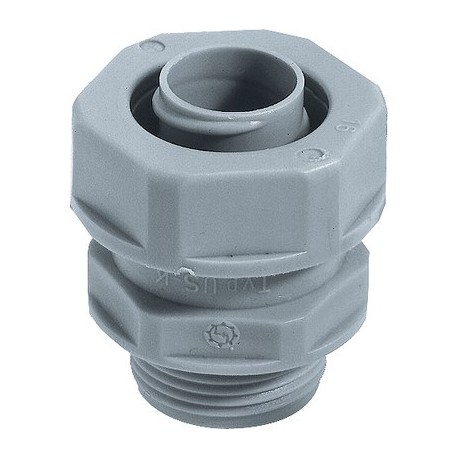

▲SILVYN® USK-M - metric threaded conduit fitting
Benefits
- Fast and easy assembly
- Vibration protection
- No extra parts necessary
Application range
- In combination with protective conduit:
- SILVYN® FPS/ FD-PU
- SILVYN® SP/SP-PU
- Indoor applications
- Light mechanical stress
Product features
- Large wrench sizes
Product Make-up
- Metric connection thread
- Hexagonal collar
- Threaded sleeve
- Cap nut
Note
- Included: SILVYN® EE-K inner sleeve
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001178
- ETIM 5.0 Class-Description: Screw connection for protective plastic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001178
- ETIM 6.0 Class-Description: Screw connection for protective plastic hose
Colour delivered
- Silver grey (RAL 7001)
Material
- PP
Protection rating
- IP 54
Temperature range
- -10°C to +110°C
