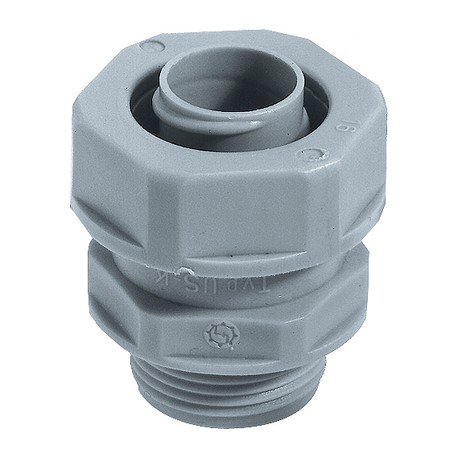

LAPP 55501330 55501330 SILVYN USK-M 20x1,5 SGY LAPP SILVYN USK-M 20x1,5 SGY View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55501330 SILVYN USK-M 20x1,5 SGY LAPP SILVYN USK-M 20x1,5 SGY

55501330

55501330

SILVYN USK-M 20x1,5 SGY

LAPP

50 Pcs.

SILVYN USK-M 20x1,5 SGY SILVYN® USK-M

Automation > Screw connection for protective plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Offering reliable performance in automated production lines, the Lapp 55501330 screw connection for protective plastic hose secures flexible tubing routes. These connectors are standard elements in electrical panel construction, protecting internal circuits from external wear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Included: SILVYN® EE-K inner sleeve
  • ETIM 5.0 Class-ID: EC001178
  • ETIM 5.0 Class-Description: Screw connection for protective plastic hose
  • ETIM 6.0 Class-ID: EC001178
  • ETIM 6.0 Class-Description: Screw connection for protective plastic hose

More info

▲

SILVYN® USK-M - metric threaded conduit fitting

Benefits

  • Fast and easy assembly
  • Vibration protection
  • No extra parts necessary

Application range

  • In combination with protective conduit:
  • SILVYN® FPS/ FD-PU
  • SILVYN® SP/SP-PU
  • Indoor applications
  • Light mechanical stress

Product features

  • Large wrench sizes

Product Make-up

  • Metric connection thread
  • Hexagonal collar
  • Threaded sleeve
  • Cap nut

Note

  • Included: SILVYN® EE-K inner sleeve

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001178
  • ETIM 5.0 Class-Description: Screw connection for protective plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001178
  • ETIM 6.0 Class-Description: Screw connection for protective plastic hose

Colour delivered

  • Silver grey (RAL 7001)

Material

  • PP

Protection rating

  • IP 54

Temperature range

  • -10°C to +110°C
