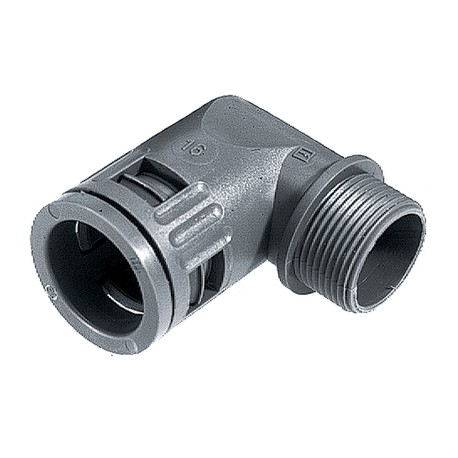

LAPP 55501165 55501165 SILVYN KLICK 90° M20x 1,5/2 BK LAPP SILVYN KLICK 90° M20x 1,5/2 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55501165 SILVYN KLICK 90° M20x 1,5/2 BK LAPP SILVYN KLICK 90° M20x 1,5/2 BK

55501165

55501165

SILVYN KLICK 90° M20x 1,5/2 BK

LAPP

50 Pcs.

SILVYN KLICK 90° M20x 1,5/2 BK SILVYN® KLICK 90° M

Automation > Screw connection for corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

SILVYN® KLICK-M - metrische conduit fitting for SILVYN® RILL

Benefits

  • 90° elbow allows easy installation
  • Fast assembly
  • Easy to disassemble
  • High-tensile
  • High sealing performance

Application range

  • In combination with protective conduit:
  • SILVYN® RILL PA 6
  • SILVYN® RILL PA 12
  • For applications with limited space
  • Rotating applications

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • Metric connection thread
  • 90° elbow
  • Body with inner sealing
  • Upper part with snap-in sleeve

Note

  • PG threaded versions are to be found in the online catalogue

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Colour delivered

  • Grey (RAL 7031)
    Black (RAL 9011), UV-resistant

Material

  • PA6
  • Halogen-free

Protection rating

  • IP 68
  • IP 69

Temperature range

  • -40 °C to +115 °C

Product Datasheet
