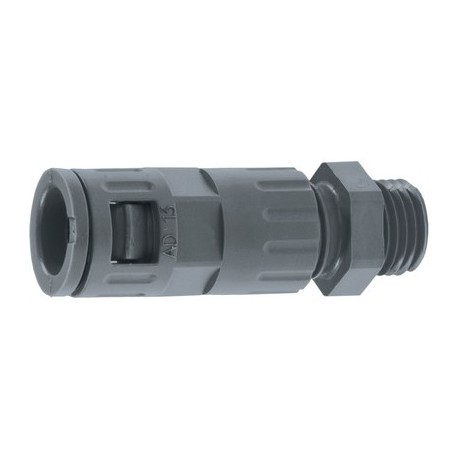

55500815 SILVYN KLICK GPZ-M 16X1,5 BK LAPP SILVYN KLICK GPZ-M 16X1,5 BK
55500815
55500815
SILVYN KLICK GPZ-M 16X1,5 BK
LAPP
20 Pcs.
Automation > Screw connection for corrugated plastic hose
SILVYN cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Supplied as a 55500815 SILVYN KLICK GPZ-M 16X1,5 BK LAPP SILVYN KLICK GPZ-M 16X1,5 BK, this connection component attaches corrugated hoses to machine panels while gripping the cable. Electrical contractors use these fittings to achieve professional cable entry with built-in strain relief in control cabinets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ETIM 5.0 Class-ID: EC001176
- ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
- ETIM 6.0 Class-ID: EC001176
- ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose
More info
▲SILVYN® KLICK GPZ-M - metric conduit fitting with integrated cable strain relief for SILVYN® RILL
Benefits
- Fast assembly
- Easy to disassemble
- Additional cable strain relief
- Additional cable sealing
Application range
- In combination with protective conduit:
- SILVYN® RILL PA 6
- SILVYN® RILL PA 12
- Robot-building
- Used in areas where cables and wires need to be provided with strain relief and additional sealing
Norm references / Approvals
- UL FILENUMBER E308201
Product Make-up
- Metric connection thread
- Cable gland
- Body with inner sealing
- Upper part with snap-in sleeve
Note
- PG threaded versions are to be found in the online catalogue
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001176
- ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001176
- ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose
Colour delivered
- Grey (RAL 7031)
Black (RAL 9011), UV-resistant
Material
- PA6
Protection rating
- IP 68
- IP 69
Temperature range
- -40 °C to +115 °C
