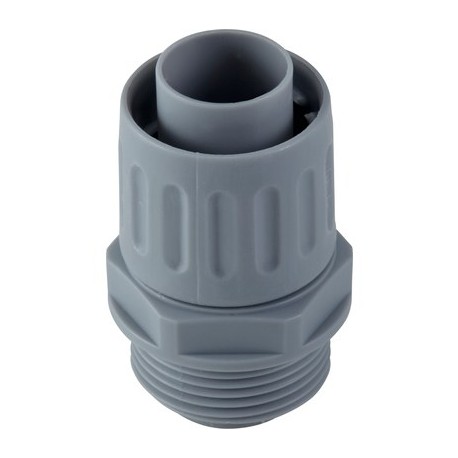

LAPP 55000010 55000010 SILVYN LKI PG 9 SGY LAPP SILVYN LKI PG 9 SGY View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55000010 SILVYN LKI PG 9 SGY LAPP SILVYN LKI PG 9 SGY

55000010

55000010

SILVYN LKI PG 9 SGY

LAPP

50 Pcs.

SILVYN LKI PG 9 SGY SILVYN® LKI

Automation > Screw connection for protective plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for secure cable management, the Lapp 55000010 screw connection for protective plastic hose fastens flexible conduits to enclosures and junction boxes. These connectors maintain strong mechanical retention for protective tubing in automated production lines.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC001178
  • ETIM 5.0 Class-Description: Screw connection for protective plastic hose
  • ETIM 6.0 Class-ID: EC001178
  • ETIM 6.0 Class-Description: Screw connection for protective plastic hose

More info

▲

SILVYN® LKI - swivelling plastic conduit fitting

Swivelling upper part with integrated inner sleeve

Benefits

  • Fast and easy assembly
  • Vibration protection
  • High-tensile
  • Can be rotated

Application range

  • In combination with protective conduit:
  • SILVYN®FPS
  • SILVYN® FD-PU
  • Robot-building
  • For rotating applications

Product features

  • Smooth inner surface
  • Slim construction

Product Make-up

  • PG connection thread
  • Swivelling upper part with integrated inner sleeve

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001178
  • ETIM 5.0 Class-Description: Screw connection for protective plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001178
  • ETIM 6.0 Class-Description: Screw connection for protective plastic hose

Colour delivered

  • Silver grey (RAL 7001)

Material

  • PP

Protection rating

  • IP 54

Temperature range

  • -10°C to +110°C
