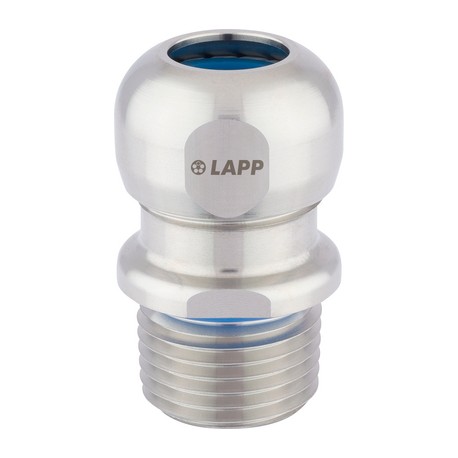

LAPP 53806780 53806780 SKINTOP INOX NPT 1/2 LAPP SKINTOP INOX NPT 1/2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

53806780 SKINTOP INOX NPT 1/2 LAPP SKINTOP INOX NPT 1/2

53806780

53806780

SKINTOP INOX NPT 1/2

LAPP

5 Pcs.

SKINTOP INOX NPT 1/2 SKINTOP® NPT STAINLESS STEEL

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built as a 53806780 SKINTOP INOX NPT 1/2 LAPP SKINTOP INOX NPT 1/2, this stainless steel cable gland provides secure strain relief and liquid-tight sealing where electrical lines enter enclosures. It protects internal wiring from moisture, dust, and mechanical pull forces in harsh industrial settings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: stainless steel - V4A (1.4404 / 316L) Insert: polyamide Sealing: silicone O-ring: silicone
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 class description: cable presses
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable presses

More info

▲

SKINTOP® INOX / SKINTOP® INOX-R, stainless steel cable presses, corrosion resistant with smooth surfaces, compact design, salt water resistant

  • Stainless steel version with compact and hygienic design
  • For use in the "splash zone" in food production

proceeds

  • Corrosion resistant
  • seawater resistant
  • Smooth, edgeless surfaces
  • Compact design
  • Wide and variable clamping ranges

Scope of use

  • For onshore and offshore use
  • Bottling plants and distilleries
  • Food industry (product-free zone, splash zone)

Reference Standards / Approvals

  • ECOLAB®
    Industry standard in the professional field of cleaning and disinfection
  • DIN EN 1672-2
    Guideline for machinery design
  • DIN EN ISO 14159
    Security of machinery – Hygienic requirements for the design of machinery
  • NSF/ANSI 169
    Hygienic design for machinery, appliances and components

Product composition

  • NPT connection nut, according to ASME B1.20.1 - 2013

ETS Classification 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 class description: cable presses

ETTIM Rating 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable presses

Material

  • Body: stainless steel - V4A
    (1.4404 / 316L)
    Insert: polyamide
    Sealing: silicone
    O-ring: silicone
  • Halogen-free

Degree of protection:

  • IP 68 - 5 bar
    IP 69
    NEMA Type 1, 2, 4x, 6, 12

Temperature range

  • from -40 °C to +100 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
