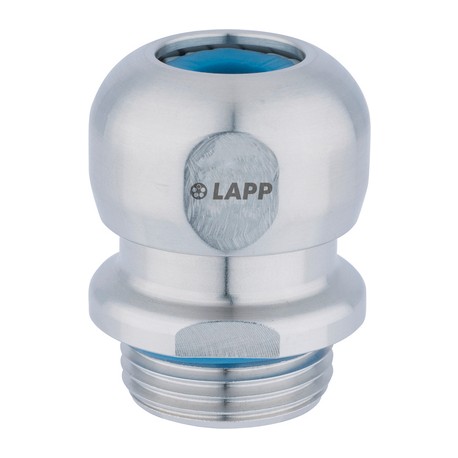

LAPP 53806744 53806744 SKINTOP INOX M40x1,5 LAPP SKINTOP INOX M40x1,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

53806744 SKINTOP INOX M40x1,5 LAPP SKINTOP INOX M40x1,5

53806744

53806744

SKINTOP INOX M40x1,5

LAPP

5 Pcs.

SKINTOP INOX M40x1,5 SKINTOP® INOX / SKINTOP® INOX-R

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 53806744 Lapp cable gland is constructed from high-grade stainless steel to resist corrosive chemicals, washdowns, and marine elements. Stainless steel entry fittings provide exceptional durability and secure cable retention in demanding food, chemical, and outdoor processing plants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: stainless steel - V4A (1.4404 / 316L)
  • Insert: polyamide
  • Sealing: silicone
  • O-ring: silicone
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 class description: cable presses
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable presses

More info

▲

SKINTOP® INOX / SKINTOP® INOX-R, stainless steel cable presses, corrosion resistant with smooth surfaces, compact design, salt water resistant

  • Stainless steel version with compact and hygienic design
  • For use in the "splash zone" in food production

proceeds

  • Corrosion resistant
  • seawater resistant
  • Smooth, edgeless surfaces
  • Compact design
  • Wide and variable clamping ranges

Scope of use

  • For onshore and offshore use
  • Bottling plants and distilleries
  • Food industry (product-free zone, splash zone)

Reference Standards / Approvals

  • ECOLAB®
    Industry standard in the professional field of cleaning and disinfection
  • DIN EN 1672-2
    Guideline for machinery design
  • DIN EN ISO 14159
    Security of machinery – Hygienic requirements for the design of machinery
  • NSF/ANSI 169
    Hygienic design for machinery, appliances and components

Product composition

  • Metric nut according to DIN EN 60423
  • Based on technical information from DIN IEC 62444

ETS Classification 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 class description: cable presses

ETTIM Rating 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable presses

Material

  • Body: stainless steel - V4A
    (1.4404 / 316L)
    Insert: polyamide
    Sealing: silicone
    O-ring: silicone
  • Halogen-free

Degree of protection:

  • IP 68 - 10 bar (M12 - M20)
    IP 68 - 5 bar (M25 - M50)
    IP 69
    NEMA Type 1, 2, 4x, 6, 12

Temperature range

  • from -40 °C to +100 °C
