View larger
Images are for illustrative purposes only. Please refer to data sheet for details

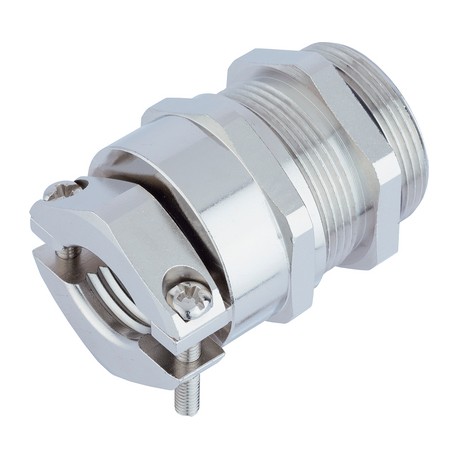

53113200 SKINTOP GRIP M20 LAPP SKINTOP GRIP M20
53113200
53113200
SKINTOP GRIP M20
LAPP
25 Pcs.
SKINTOP GRIP M20
SKINTOP
Cables > Cable gland
SKINTOP cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲SKINTOP® GRIP-M Saddle-clamp strain relief cable gland for harsh application conditions
New: now also available with long connection thread
Benefits
- Protection against kinking and rip out of cables
- High strain relief
- For high mechanical stress
- Reliable bending and anti-kink protection
Application range
- Saddle clamp strain relief gland for harsh application conditions
- Portable equipment
- Machines and systems on building sites
- Crane and conveying machinery
- Charging infrastructure for EV´s
Norm references / Approvals
- Metric connection thread acc. to DIN EN 60423
- Basis for technical information DIN IEC 62444
- Tested according to IEC 62196-1: Conductive charging of electric vehicles
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Caution
- Refer to the instruction leaflet for the installation dimensions and torques
Material
- Body: nickel-plated brass
Insert: polyamide
Sealing: CR
O-ring: NBR
Protection rating
- IP 68 - 10 bar
- IP 69
Temperature range
- Dynamic: -25°C up to +100°C
- Fixed: -40°C to +100°C
