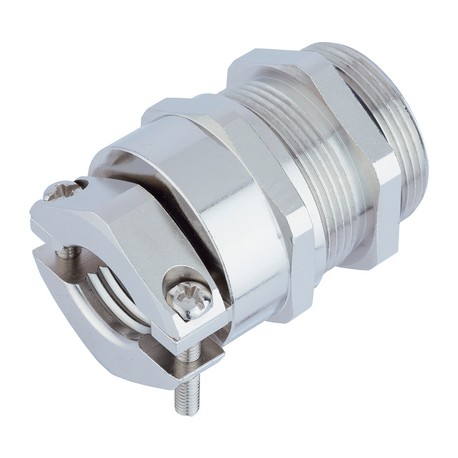

53113180 SKINTOP GRIP M16 LAPP SKINTOP GRIP M16
53113180
53113180
SKINTOP GRIP M16
LAPP
25 Pcs.
Cables > Cable gland
SKINTOP cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for robust cable management, the 53113180 SKINTOP GRIP M16 LAPP SKINTOP GRIP M16 is a mechanical cable gland used to secure flexible lines entering electrical equipment. Components like this maintain enclosure integrity while preventing pull-out forces on internal terminations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Tested according to IEC 62196-1: conductive charging of electric vehicles
- Body: nickel-plated brass Insert: polyamide Gasket: CR O-ring: NBR
- Mobile: -25°C to +100°C
- Static: -40°C to +100°C
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 class description: cable presses
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable presses
More info
▲SKINTOP® GRIP-M, cable hoists with traction discharge clamp for severe conditions
NEW: now also with XL connection nut
proceeds
- Protection against bending and starting cables
- High traction discharge
- Withstands large mechanical forces
- reliable flex and twist protection
Scope of use
- Double stirrup traction discharge cable presses for extreme use conditions
- Mobile equipment
- Machinery and systems on site
- Crane and transport machinery
- Charging infrastructure for electric vehicles
Reference Standards / Approvals
- Metric nut according to DIN EN 60423
- Based on technical information from DIN IEC 62444
- Tested according to IEC 62196-1: conductive charging of electric vehicles
ETS Classification 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 class description: cable presses
ETTIM Rating 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable presses
Notice
- Installation dimensions and tightening torques, refer to the instruction manual
Material
- Body: nickel-plated brass Insert: polyamide Gasket: CR O-ring: NBR
Degree of protection:
- IP 68 - 10 bar
- IP 69
Temperature range
- Mobile: -25°C to +100°C
- Static: -40°C to +100°C
