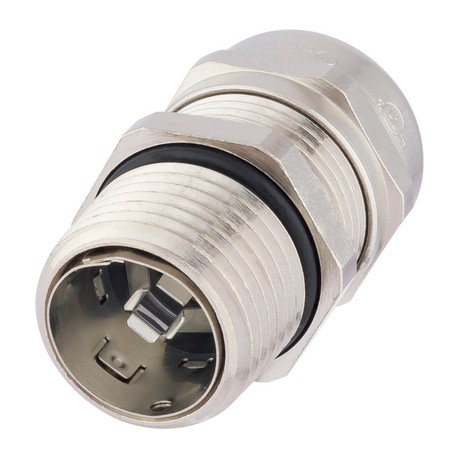

LAPP 53112940 53112940 SKINTOP MS-SC NPT 1" LAPP SKINTOP MS-SC NPT 1" View larger
Images are for illustrative purposes only. Please refer to data sheet for details

53112940 SKINTOP MS-SC NPT 1" LAPP SKINTOP MS-SC NPT 1"

53112940

53112940

SKINTOP MS-SC NPT 1"

LAPP

25 Pcs.

SKINTOP MS-SC NPT 1" SKINTOP® MS-SC NPT

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 53112940 SKINTOP MS-SC NPT 1" LAPP SKINTOP MS-SC NPT 1" by Lapp functions as a cable screw gland designed to secure cables while providing integrated grounding and shielding options for screened lines. Facilities use these components to ensure electromagnetic compatibility and robust mechanical protection on machine frames. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: nickel-plated brass
  • Insert: polyamide
  • Sealing: CR
  • O-ring: NBR
  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINTOP® MS-SC NPT, brass cable gland with highly conductive, flexible EMC contact, for cables with and without inner sheath

Benefits

  • Low-resistance screen contact, optimum EMC protection
  • Suitable for cables with and without inner sheath
  • Also suitable for continuing the cable screen to another connection
  • Highly conductive, flexible EMC contact for clamping various screen diameters
  • Few operation steps, easy to assemble

Application range

  • For EMC-compliant earthing of the copper braiding
  • Automation technology
  • Telecommunication
  • Measurement and control technology
  • Industrial machinery and plant engineering

Norm references / Approvals

  • UL File Nr. E79903

Product Make-up

  • NPT connection thread acc. to ASME B1.20.1 - 2013

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Material

  • Body: nickel-plated brass
    Insert: polyamide
    Sealing: CR
    O-ring: NBR

Protection rating

  • IP 68 - 10 bar
  • NEMA Type 1, 4x, 6, 12

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C
