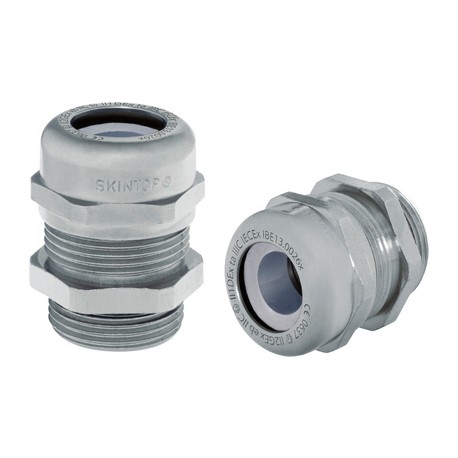

LAPP 53112735 53112735 SKINTOP MSR-M 25x1,5 ATEX LAPP SKINTOP MSR-M 25X1.5 ATEX View larger
Images are for illustrative purposes only. Please refer to data sheet for details

53112735 SKINTOP MSR-M 25x1,5 ATEX LAPP SKINTOP MSR-M 25X1.5 ATEX

53112735

53112735

SKINTOP MSR-M 25x1,5 ATEX

LAPP

25 Pcs.

SKINTOP MSR-M 25X1.5 ATEX SKINTOP® MSR-M ATEX

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lapp cable screw gland, part number 53112735, secures and seals electrical cables entering hazardous or explosion-protected equipment enclosures. These specialized fittings prevent external environmental agents from entering control housings in demanding industrial environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: nickel-plated brass Insert: polyamide Sealing: CR O-ring: NBR
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINTOP® MSR-M ATEX, anti-static brass cable gland with cold impact resistance and reducing seal insert, explosion-proof

Benefits

  • Cold impact resistance
  • High strain relief
  • Wide, variable clamping ranges
  • Maximum reliability

Application range

  • With reducing seal insert, to seal cables with smaller outer diameters

Product Make-up

  • Metric connection thread acc. to DIN EN 60423
  • Basis for technical information DIN IEC 62444

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to the instruction leaflet for the installation dimensions and torques

Certifications

  • CE 0637 Ex II 2G
    Ex eb IIC Ex II 1D
    Ex ta IIIC
    IECEx IBE 13.0026X

Material

  • Body: nickel-plated brass
    Insert: polyamide
    Sealing: CR
    O-ring: NBR

Tests

  • DIN EN 60079-0
    DIN EN 60079-7
    DIN EN 60079-31

Protection rating

  • IP 68 - 10 bar
    IP 66
    NEMA Type 1, 4x, 6, 12

Temperature range

  • -30°C to +90°C
