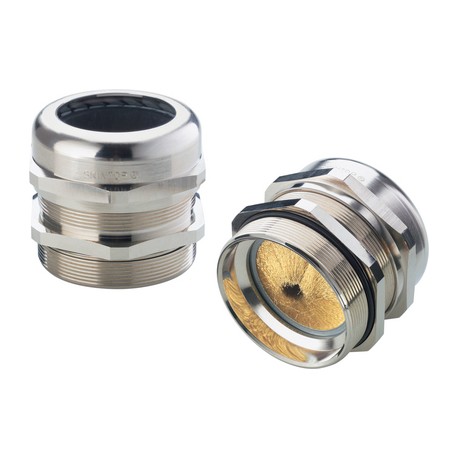

LAPP 53112681 53112681 SKINTOP MS-M BRUSH 63x1,5 plus LAPP SKINTOP MS-M BRUSH 63x1,5 plus View larger
Images are for illustrative purposes only. Please refer to data sheet for details

53112681 SKINTOP MS-M BRUSH 63x1,5 plus LAPP SKINTOP MS-M BRUSH 63x1,5 plus

53112681

53112681

SKINTOP MS-M BRUSH 63x1,5 plus

LAPP

1 Pcs.

SKINTOP MS-M BRUSH 63x1,5 plus SKINTOP® MS-M BRUSH

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a Lapp 53112681 SKINTOP MS-M BRUSH 63x1,5 plus cable screw gland, this specialized hardware routes incoming cables into electrical enclosures while terminating shielding layers for optimal electromagnetic compatibility. Cable glands anchor conductors securely and seal enclosure entry points against environmental debris. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • NEW: Now also available in size M20x1.5
  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C to +100°C
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINTOP® MS-M BRUSH, brass cable gland with double lamella gasket, faster, low resistance 360° screen contact, simple assembling

  • NEW: Now also available in size M20x1.5
  • SKINTOP® MS-M sizes 75 x 1.5 to 110 x 2 with innovative double lamella gasket for easier assembling of cables with large diameters.

Benefits

  • Optimum, low-resistance 360° screen contact
  • Faster than any other comparable system
  • Also suitable for continuing the cable screen to another connection
  • Uncomplicated and reliable
  • Maximum assembly freedom during adjustment

Application range

  • For EMC-compliant earthing of the copper braiding
  • Automation systems
  • High-power drives
  • Frequency converters
  • Conveyor and transport systems

Norm references / Approvals

  • UL File Nr. E79903
  • UL approval for SKINTOP MS-M BRUSH M 20 x 1,5 up to M 75 x 1,5 plus and SKINTOP MS-M BRUSH 20 x 1,5 XL

Product Make-up

  • Metric connection thread acc. to DIN EN 60423
  • Basis for technical information DIN IEC 62444

Note

  • SKINDICHT® SM-PE-M counter nut should be used to ensure optimum contact with painted, anodised or powder-coated housings

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to Appendix T21 for the installation dimensions and torques

Material

  • Body: nickel-plated brass
    Cap nut: nickel-plated brass
    Insert: polyamide
    EMC brush: brass wire
    Sealing ring: elastomer
    O-ring: elastomer

Protection rating

  • IP 68 - 10 bar (M12 - M110)
    IP 69 (M12 - M63)
    NEMA Type 1, 4x, 6, 12

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C to +100°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
