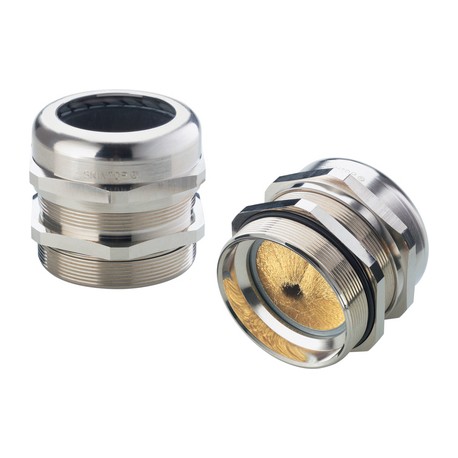

53112679 SKINTOP MS-M BRUSH 50x1,5 LAPP SKINTOP MS-M BRUSH 50x1,5
53112679
53112679
SKINTOP MS-M BRUSH 50x1,5
LAPP
5 Pcs.
Cables > Cable gland
SKINTOP cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Lapp 53112679 SKINTOP MS-M BRUSH 50x1,5 cable screw gland provides reliable cable entry and strain relief in industrial control cabinets and machinery. Cable glands secure electrical feeds entering enclosures, maintaining environmental protection and preventing strain on internal terminal blocks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- NEW: Now also available in size M20x1.5: NEW: Now also available in size M20x1.5
- Dynamic: -25°C up to +100°C: Dynamic: -25°C up to +100°C
- Fixed: -40°C to +100°C: Fixed: -40°C to +100°C
- ETIM 5.0 Class-ID: EC000441: ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland: ETIM 5.0 Class-Description: Cable screw gland
- ETIM 6.0 Class-ID: EC000441: ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland: ETIM 6.0 Class-Description: Cable screw gland
More info
▲SKINTOP® MS-M BRUSH, brass cable gland with double lamella gasket, faster, low resistance 360° screen contact, simple assembling
- NEW: Now also available in size M20x1.5
- SKINTOP® MS-M sizes 75 x 1.5 to 110 x 2 with innovative double lamella gasket for easier assembling of cables with large diameters.
Benefits
- Optimum, low-resistance 360° screen contact
- Faster than any other comparable system
- Also suitable for continuing the cable screen to another connection
- Uncomplicated and reliable
- Maximum assembly freedom during adjustment
Application range
- For EMC-compliant earthing of the copper braiding
- Automation systems
- High-power drives
- Frequency converters
- Conveyor and transport systems
Norm references / Approvals
- UL File Nr. E79903
- UL approval for SKINTOP MS-M BRUSH M 20 x 1,5 up to M 75 x 1,5 plus and SKINTOP MS-M BRUSH 20 x 1,5 XL
Product Make-up
- Metric connection thread acc. to DIN EN 60423
- Basis for technical information DIN IEC 62444
Note
- SKINDICHT® SM-PE-M counter nut should be used to ensure optimum contact with painted, anodised or powder-coated housings
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Caution
- Refer to Appendix T21 for the installation dimensions and torques
Material
- Body: nickel-plated brass
Cap nut: nickel-plated brass
Insert: polyamide
EMC brush: brass wire
Sealing ring: elastomer
O-ring: elastomer
Protection rating
- IP 68 - 10 bar (M12 - M110)
IP 69 (M12 - M63)
NEMA Type 1, 4x, 6, 12
Temperature range
- Dynamic: -25°C up to +100°C
- Fixed: -40°C to +100°C
