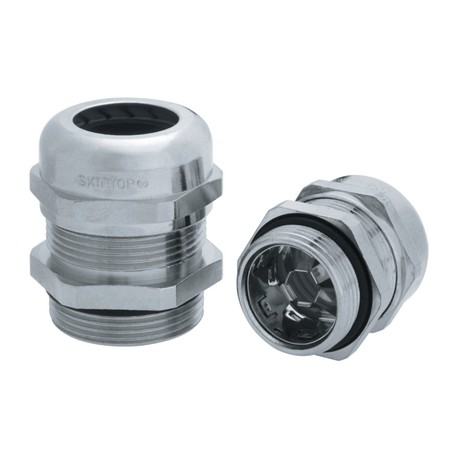

53112660 SKINTOP MS-SC M 40x1,5 LAPP SKINTOP MS-SC M 40x1,5
53112660
53112660
SKINTOP MS-SC M 40x1,5
LAPP
10 Pcs.
Cables > Cable gland
SKINTOP cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for electromagnetic compatibility, the Lapp 53112660 SKINTOP MS-SC M 40x1,5 is a shielded cable screw gland designed to terminate armored or shielded cables effectively. EMC glands provide low-resistance shield contact to enclosure walls, preventing electromagnetic interference from disrupting sensitive industrial automation networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Body: nickel-plated brass Insert: polyamide Sealing: CR O-ring: NBR
- Dynamic: -25°C up to +100°C
- Fixed: -40°C up to +100°C
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
More info
▲SKINTOP® MS-SC-M, brass cable gland with low-resistance screen contact and highly conductive, flexible EMC contact, easy to assemble
Also available as lead-free version - the lead-free articles end on LF after the article number
Benefits
- Low-resistance screen contact, optimum EMC protection
- Suitable for cables with and without inner sheath
- Also suitable for continuing the cable screen to another connection
- Highly conductive, flexible EMC contact for clamping various screen diameters
- Few operation steps, easy to assemble
Application range
- For EMC-compliant earthing of the copper braiding
- Telecommunication
- Industrial machinery and plant engineering
- Measurement and control technology
- Automation technology
Norm references / Approvals
- UL File Nr. E79903
Product Make-up
- Metric connection thread acc. to DIN EN 60423
- Basis for technical information DIN IEC 62444
Note
- SKINDICHT® SM-PE-M counter nut should be used to ensure optimum contact with painted, anodised or powder-coated housings
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Caution
- Refer to Appendix T21 for the installation dimensions and torques
Note
- In stainless steel V2A available
Material
- Body: nickel-plated brass
Insert: polyamide
Sealing: CR
O-ring: NBR
Protection rating
- IP 68 - 10 bar
IP 69
NEMA Type 1, 4x, 6, 12
Temperature range
- Dynamic: -25°C up to +100°C
- Fixed: -40°C up to +100°C
