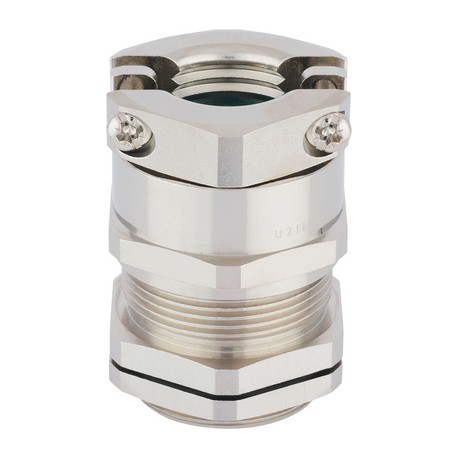

LAPP 53112554 53112554 SKINTOP MS-HF-M GRIP M32 LAPP SKINTOP MS-HF-M GRIP M32 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

53112554 SKINTOP MS-HF-M GRIP M32 LAPP SKINTOP MS-HF-M GRIP M32

53112554

53112554

SKINTOP MS-HF-M GRIP M32

LAPP

25 Pcs.

SKINTOP MS-HF-M GRIP M32 SKINTOP® MS-HF-M GRIP

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Lapp 53112554 SKINTOP MS-HF-M GRIP M32 cable screw gland ensures secure mechanical retention and sealing for high-specification industrial cable runs. Cable glands maintain structural continuity and protection against mechanical strain where conductors enter control units.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Hazard Level: HL 3
  • Mobile: -25°C to +100°C
  • Static: -40°C to +100°C
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 class description: cable presses
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable presses

More info

▲

SKINTOP® GRIP-M, cable hoists with traction discharge clamp for severe conditions

  • Cable channels for railway applications
  • Hazard Level: HL 3

proceeds

  • Halogen-free and non-flame propagator
  • reliable flex and twist protection
  • High traction discharge
  • Withstands large mechanical forces

Scope of use

  • Double stirrup traction discharge cable presses for extreme use conditions
  • Mobile equipment
  • Machinery and systems on site
  • Crane and transport machinery
  • Plant Engineering

Reference Standards / Approvals

  • DIN EN 45545-2 (HL3)
  • DIN EN 45545-3 (E30)

Product composition

  • Metric nut according to DIN EN 60423
  • Based on technical information from DIN IEC 62444

ETS Classification 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 class description: cable presses

ETTIM Rating 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable presses

Notice

  • Installation dimensions and tightening torques, refer to the instruction manual

Material

  • Body: nickel-plated brass Insert: halogen-free polyamide according to UL94V0 Gasket: special elastomer O-ring: special elastomer

Degree of protection:

  • IP 68 - 5 bar

Temperature range

  • Mobile: -25°C to +100°C
  • Static: -40°C to +100°C
