View larger
Images are for illustrative purposes only. Please refer to data sheet for details

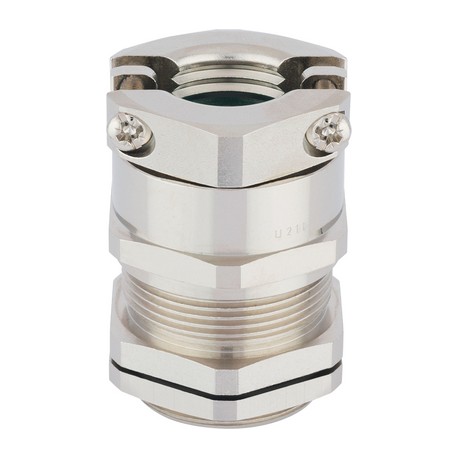

53112552 SKINTOP MS-HF-M GRIP M20 LAPP SKINTOP MS-HF-M GRIP M20
53112552
53112552
SKINTOP MS-HF-M GRIP M20
LAPP
25 Pcs.
SKINTOP MS-HF-M GRIP M20
SKINTOP® MS-HF-M GRIP
Cables > Cable gland
SKINTOP cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲SKINTOP® GRIP-M, cable hoists with traction discharge clamp for severe conditions
- Cable channels for railway applications
- Hazard Level: HL 3
proceeds
- Halogen-free and non-flame propagator
- reliable flex and twist protection
- High traction discharge
- Withstands large mechanical forces
Scope of use
- Double stirrup traction discharge cable presses for extreme use conditions
- Mobile equipment
- Machinery and systems on site
- Crane and transport machinery
- Plant Engineering
Reference Standards / Approvals
- DIN EN 45545-2 (HL3)
- DIN EN 45545-3 (E30)
Product composition
- Metric nut according to DIN EN 60423
- Based on technical information from DIN IEC 62444
ETS Classification 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 class description: cable presses
ETTIM Rating 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable presses
Notice
- Installation dimensions and tightening torques, refer to the instruction manual
Material
- Body: nickel-plated brass Insert: halogen-free polyamide according to UL94V0 Gasket: special elastomer O-ring: special elastomer
Degree of protection:
- IP 68 - 5 bar
Temperature range
- Mobile: -25°C to +100°C
- Static: -40°C to +100°C
