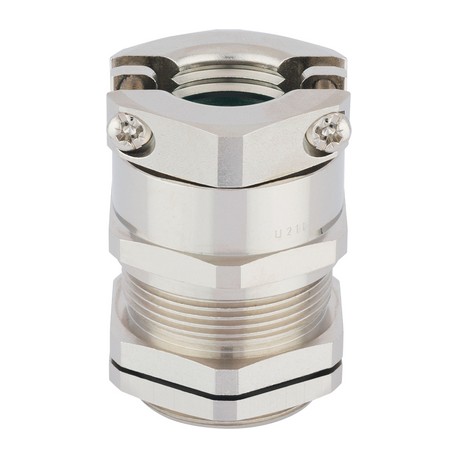

LAPP 53112551 53112551 SKINTOP MS-HF-M GRIP M16 LAPP SKINTOP MS-HF-M GRIP M16 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

53112551 SKINTOP MS-HF-M GRIP M16 LAPP SKINTOP MS-HF-M GRIP M16

53112551

53112551

SKINTOP MS-HF-M GRIP M16

LAPP

25 Pcs.

SKINTOP MS-HF-M GRIP M16 SKINTOP® MS-HF-M GRIP

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed as a Lapp 53112551 SKINTOP MS-HF-M GRIP M16 cable press, this hardware manages wiring entry into Halogen-free industrial automation systems and railway applications. Cable presses provide dependable strain relief and environmental sealing to preserve circuit reliability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mobile: -25°C to +100°C
  • Static: -40°C to +100°C
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 class description: cable presses
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable presses

More info

▲

proceeds

  • Halogen-free and non-flame propagator
  • reliable flex and twist protection
  • High traction discharge
  • Withstands large mechanical forces

Scope of use

  • Double stirrup traction discharge cable presses for extreme use conditions
  • Mobile equipment
  • Machinery and systems on site
  • Crane and transport machinery
  • Plant Engineering

Reference Standards / Approvals

  • DIN EN 45545-2 (HL3)
  • DIN EN 45545-3 (E30)

Product composition

  • Metric nut according to DIN EN 60423
  • Based on technical information from DIN IEC 62444

ETS Classification 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 class description: cable presses

ETTIM Rating 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable presses

Notice

  • Installation dimensions and tightening torques, refer to the instruction manual

Material

  • Body: nickel-plated brass Insert: halogen-free polyamide according to UL94V0 Gasket: special elastomer O-ring: special elastomer

Degree of protection:

  • IP 68 - 5 bar

Temperature range

  • Mobile: -25°C to +100°C
  • Static: -40°C to +100°C
