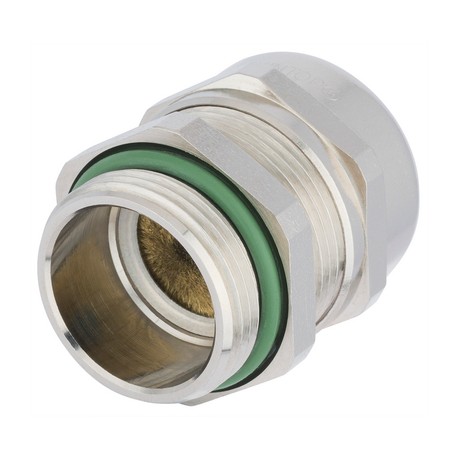

LAPP 53112546 53112546 SKINTOP MS-HF-M BRUSH M50 LAPP SKINTOP MS-HF-M BRUSH M50 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

53112546 SKINTOP MS-HF-M BRUSH M50 LAPP SKINTOP MS-HF-M BRUSH M50

53112546

53112546

SKINTOP MS-HF-M BRUSH M50

LAPP

5 Pcs.

SKINTOP MS-HF-M BRUSH M50 SKINTOP® MS-HF-M BRUSH

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lapp 53112546 cable screw gland guides and secures conductors into electrical enclosures while maintaining structural integrity. Industrial applications rely on these components to prevent wire damage and seal entry ports against dust and liquids. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

Benefits

  • Halogen-free and flame-retardant
  • Optimum, low-resistance 360° screen contact
  • Faster than any other comparable system
  • Maximum reliability
  • Maximum assembly freedom during adjustment

Application range

  • Underground railways and trains
  • Automation systems
  • High-power drives
  • Frequency converters
  • Conveyor and transport systems

Norm references / Approvals

  • DIN EN 45545-2 (HL3)
  • DIN EN 45545-3 (E30)

Product Make-up

  • Metric connection thread acc. to DIN EN 60423
  • Basis for technical information DIN IEC 62444

Note

  • SKINDICHT® SM-PE-M counter nut should be used to ensure optimum contact with painted, anodised or powder-coated housings

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to Appendix T21 for the installation dimensions and torques

Material

  • Body: nickle plated brass
    Insert: haolgen-free polyamide acc. to UL 94 V0
    EMC-brush: brass wire
    Sealing: special elastomere
    O-ring: special elastomere

Protection rating

  • IP 68 - 5 bar

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C to +100°C
