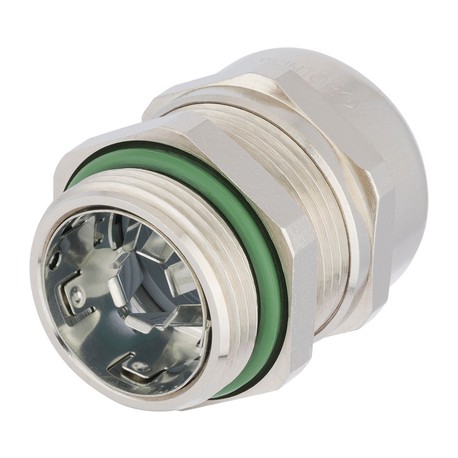

LAPP 53112536 53112536 SKINTOP MS-HF-M SC M50 LAPP SKINTOP MS-HF-M SC M50 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

53112536 SKINTOP MS-HF-M SC M50 LAPP SKINTOP MS-HF-M SC M50

53112536

53112536

SKINTOP MS-HF-M SC M50

LAPP

5 Pcs.

SKINTOP MS-HF-M SC M50 SKINTOP® MS-HF-M SC

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Meeting stringent safety and fire protection standards, the Lapp part number 53112536 cable screw gland secures and shields incoming cables in critical transit and infrastructure applications. These glands provide robust grounding and strain relief for demanding environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Hazard Level: HL 3
  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINTOP® MS-SC-M, brass cable gland with low-resistance screen contact and highly conductive, flexible EMC contact, easy to assemble

  • Cable gland for railway applications
  • Hazard Level: HL 3

Benefits

  • Halogen-free and flame-retardant
  • Suitable for cables with and without inner sheath
  • Low-resistance screen contact, optimum EMC protection
  • Highly conductive, flexible EMC contact for clamping various screen diameters
  • Few operation steps, easy to assemble

Application range

  • Underground railways and trains
  • For EMC-compliant earthing of the copper braiding
  • Industrial machinery and plant engineering
  • Measurement and control technology
  • Automation technology

Norm references / Approvals

  • DIN EN 45545-2 (HL3)
  • DIN EN 45545-3 (E30)

Product Make-up

  • Metric connection thread acc. to DIN EN 60423
  • Basis for technical information DIN IEC 62444

Note

  • SKINDICHT® SM-PE-M counter nut should be used to ensure optimum contact with painted, anodised or powder-coated housings

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to Appendix T21 for the installation dimensions and torques

Material

  • Body: nickel plated brass
    Insert: halogen-free polyamid acc. to UL 94 V0
    Sealing: special elastomer
    O-ring: special elastomer

Protection rating

  • IP 68 - 5 bar

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C
