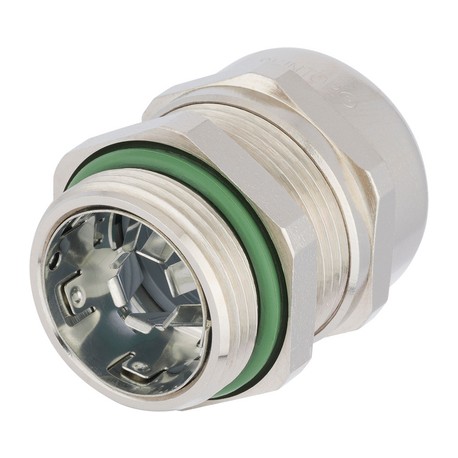

LAPP 53112534 53112534 SKINTOP MS-HF-M SC M32 LAPP SKINTOP MS-HF-M SC M32 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

53112534 SKINTOP MS-HF-M SC M32 LAPP SKINTOP MS-HF-M SC M32

53112534

53112534

SKINTOP MS-HF-M SC M32

LAPP

25 Pcs.

SKINTOP MS-HF-M SC M32 SKINTOP® MS-HF-M SC

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 53112534 Lapp cable gland provides a robust entry point for instrumentation and power cables entering specialized industrial control cabinets. High-specification cable glands ensure dependable strain relief and tight sealing performance, safeguarding sensitive circuits from environmental degradation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Hazard Level: HL 3
  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINTOP® MS-SC-M, brass cable gland with low-resistance screen contact and highly conductive, flexible EMC contact, easy to assemble

  • Cable gland for railway applications
  • Hazard Level: HL 3

Benefits

  • Halogen-free and flame-retardant
  • Suitable for cables with and without inner sheath
  • Low-resistance screen contact, optimum EMC protection
  • Highly conductive, flexible EMC contact for clamping various screen diameters
  • Few operation steps, easy to assemble

Application range

  • Underground railways and trains
  • For EMC-compliant earthing of the copper braiding
  • Industrial machinery and plant engineering
  • Measurement and control technology
  • Automation technology

Norm references / Approvals

  • DIN EN 45545-2 (HL3)
  • DIN EN 45545-3 (E30)

Product Make-up

  • Metric connection thread acc. to DIN EN 60423
  • Basis for technical information DIN IEC 62444

Note

  • SKINDICHT® SM-PE-M counter nut should be used to ensure optimum contact with painted, anodised or powder-coated housings

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to Appendix T21 for the installation dimensions and torques

Material

  • Body: nickel plated brass
    Insert: halogen-free polyamid acc. to UL 94 V0
    Sealing: special elastomer
    O-ring: special elastomer

Protection rating

  • IP 68 - 5 bar

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C
