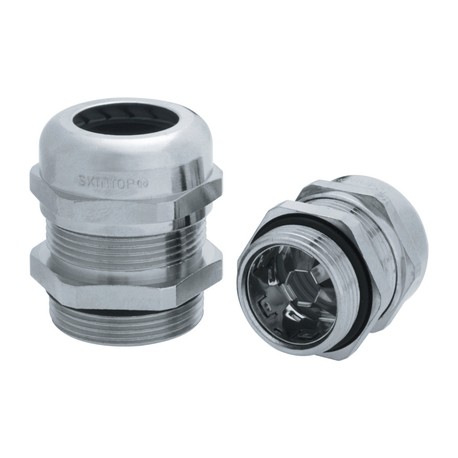

LAPP 53112210 53112210 SKINTOP MS-SC PG 9 LAPP SKINTOP MS-SC PG 9 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

53112210 SKINTOP MS-SC PG 9 LAPP SKINTOP MS-SC PG 9

53112210

53112210

SKINTOP MS-SC PG 9

LAPP

50 Pcs.

SKINTOP MS-SC PG 9 SKINTOP® MS-SC

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed as a reliable cable screw gland, the Lapp 53112210 secures conductors passing into control panels and heavy machinery enclosures while maintaining environmental integrity. These components are widely utilized across industrial automation setups to provide strain relief, organize wiring routes, and protect internal connections from mechanical stress or dust ingress. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Body: nickel-plated brass Insert: polyamide Sealing: CR O-ring: NBR
  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C to +100°C
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINTOP® MS-SC, brass cable gland with low-resistance screen contact and highly conductive, flexible EMC contact, easy to assemble

Benefits

  • Low-resistance screen contact, optimum EMC protection
  • Suitable for cables with and without inner sheath
  • Also suitable for continuing the cable screen to another connection
  • Highly conductive, flexible EMC contact for clamping various screen diameters
  • Few operation steps, easy to assemble

Application range

  • For EMC-compliant earthing of the copper braiding
  • Telecommunication
  • Industrial machinery and plant engineering
  • Measurement and control technology
  • Automation technology

Product Make-up

  • PG connection thread acc. to DIN 40430

Note

  • EMC counter nut, SKINDICHT® SM nut should be used to ensure optimum contact with painted, anodised or powder-coated housings

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to Appendix T21 for the installation dimensions and torques

Material

  • Body: nickel-plated brass
    Insert: polyamide
    Sealing: CR
    O-ring: NBR

Protection rating

  • IP 68 - 5 bar

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C to +100°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
