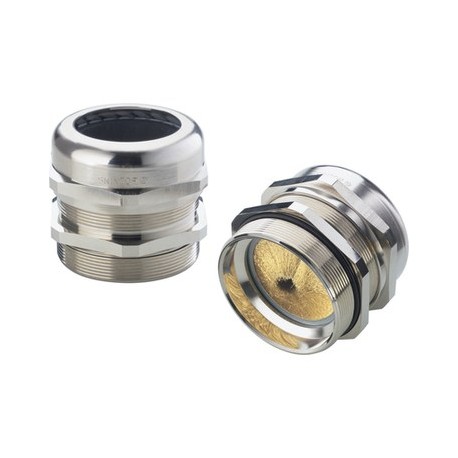

53112087 SKINTOP MS-NPT BRUSH 2" plus LAPP Cable gland
53112087
53112087
SKINTOP MS-NPT BRUSH 2" plus
LAPP
1 Pcs.
Cables > Cable gland
SKINTOP cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Terminating large-diameter shielded cables with low-resistance screen contact is the role of this Lapp 53112087 SKINTOP MS-NPT BRUSH 2 plus cable gland. EMC cable glands provide 360-degree shielding connections and robust strain relief for industrial drives and automation systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Dynamic: -25°C up to + 100°C
- Fixed: -40°C up to +100°C
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
More info
▲SKINTOP® MS-NPT BRUSH, uncomplicated brass cable gland with fast screen contact and maximum assembly freedom, NPT connection thread
Benefits
- Faster, easier screen contact
- Optimum, low-resistance 360° screen contact
- Faster than any other comparable system
- Uncomplicated and reliable
- Maximum assembly freedom during adjustment
Application range
- For EMC-compliant earthing of the copper braiding, or for cables with copper shaft sheath
- Automation technology
- Conveyor technology
- High-power drives
- Frequency converters
Norm references / Approvals
- UL File Nr. E79903
Product Make-up
- NPT connection thread acc. to ASME B1.20.1 - 2013
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Material
- Body: nickel-plated brass
Cap nut: nickel-plated brass
Insert: polyamide
EMC brush: brass wire
Sealing ring: elastomer
O-ring: elastomer
Protection rating
- IP 68 - 10 bar
Temperature range
- Dynamic: -25°C up to + 100°C
- Fixed: -40°C up to +100°C
