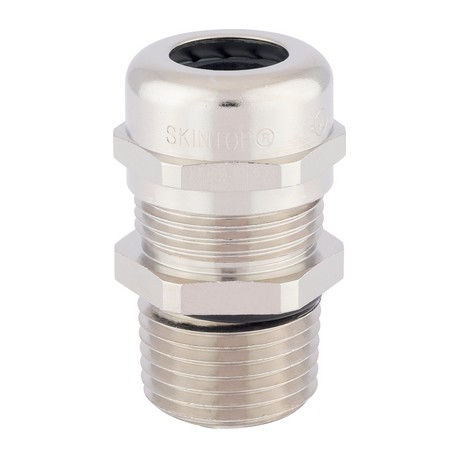

LAPP 53112034 53112034 SKINTOP MS-NPT 3/4'' LAPP SKINTOP MS-NPT 3/4'' View larger
Images are for illustrative purposes only. Please refer to data sheet for details

53112034 SKINTOP MS-NPT 3/4'' LAPP SKINTOP MS-NPT 3/4''

53112034

53112034

SKINTOP MS-NPT 3/4''

LAPP

25 Pcs.

SKINTOP MS-NPT 3/4'' SKINTOP® MS NPT

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 53112034 SKINTOP MS-NPT 3/4'' operates as a metallic cable screw gland designed with NPT threading to secure wiring entries in heavy machinery and regional electrical systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: nickel-plated brass Insert: polyamide Sealing: CR O-ring: NBR
  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C to +100°C
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINTOP® MS NPT, nickel-plated brass cable gland with conical NPT thread and wide, variable clamping ranges for optimum strain relief

Benefits

  • Conical NPT thread
  • Maximum reliability
  • Optimum strain relief
  • Wide, variable clamping ranges

Application range

  • In areas where mechanical and chemical stability are critical
  • Chemical industry
  • Measurement and control technology
  • Machine and equipment manufacturing
  • Plant engineering

Norm references / Approvals

  • UL File Nr. E79903

Product Make-up

  • NPT connection thread acc. to ASME B1.20.1 - 2013
  • SKINTOP® MSR NPT is equipped with a reduction seal insert to seal cables and wires with small outer diameters

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Material

  • Body: nickel-plated brass
    Insert: polyamide
    Sealing: CR
    O-ring: NBR

Protection rating

  • IP 68 - 10 bar
  • NEMA Type 1, 4x, 6, 12

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C to +100°C
