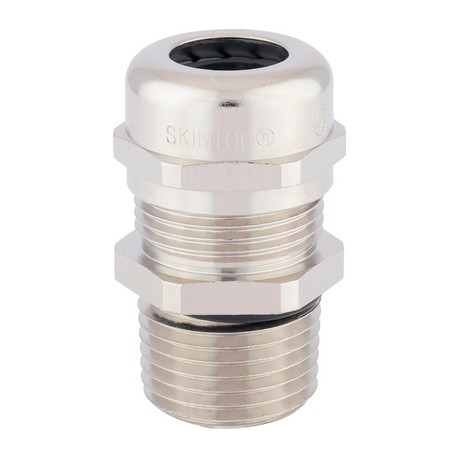

LAPP 53112024 53112024 SKINTOP MS-NPT 1/2'' LAPP SKINTOP MS-NPT 1/2'' View larger
Images are for illustrative purposes only. Please refer to data sheet for details

53112024 SKINTOP MS-NPT 1/2'' LAPP SKINTOP MS-NPT 1/2''

53112024

53112024

SKINTOP MS-NPT 1/2''

LAPP

50 Pcs.

SKINTOP MS-NPT 1/2'' SKINTOP® MS NPT

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 53112024 SKINTOP MS-NPT 1/2'' cable screw gland offers secure cable retention and sealing for industrial control equipment. Proper cable gland installation prevents wiring pull-out and blocks environmental moisture from reaching live electrical components. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: nickel-plated brass Insert: polyamide Sealing: CR O-ring: NBR
  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C to +100°C
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINTOP® MS NPT, nickel-plated brass cable gland with conical NPT thread and wide, variable clamping ranges for optimum strain relief

Benefits

  • Conical NPT thread
  • Maximum reliability
  • Optimum strain relief
  • Wide, variable clamping ranges

Application range

  • In areas where mechanical and chemical stability are critical
  • Chemical industry
  • Measurement and control technology
  • Machine and equipment manufacturing
  • Plant engineering

Norm references / Approvals

  • UL File Nr. E79903

Product Make-up

  • NPT connection thread acc. to ASME B1.20.1 - 2013
  • SKINTOP® MSR NPT is equipped with a reduction seal insert to seal cables and wires with small outer diameters

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Material

  • Body: nickel-plated brass
    Insert: polyamide
    Sealing: CR
    O-ring: NBR

Protection rating

  • IP 68 - 10 bar
  • NEMA Type 1, 4x, 6, 12

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C to +100°C
