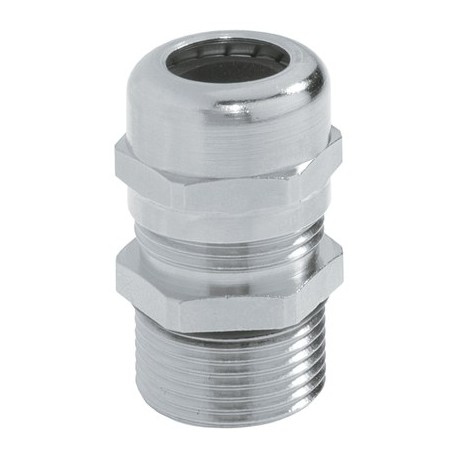

52115730 SKINTOP MS-XL PG 13,5 LAPP SKINTOP MS-XL PG 13,5
52115730
52115730
SKINTOP MS-XL PG 13,5
LAPP
50 Pcs.
Cables > Cable gland
SKINTOP cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for extended thread applications, the Lapp 52115730 cable screw gland provides reliable sealing and strain relief through thicker enclosure walls.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Body: nickel-plated brass Insert: polyamide Sealing: CR O-ring: NBR
- Dynamic: -25°C up to +100°C
- Fixed: -40°C up to +100°C
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
More info
▲SKINTOP® MS-XL, brass cable gland with wide, variable clamping ranges, with long connection thread especially for thick walls
Benefits
- Especially for thick walls
- Maximum reliability
- Wide, variable clamping ranges
- Optimum strain relief
Application range
- With long connection thread for applications involving a thicker wall
- In areas where mechanical and chemical stability are critical
- Chemical industry
- Measurement and control technology
- Machine and equipment manufacturing
Product Make-up
- PG connection thread acc. to DIN 40430
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Caution
- Refer to Appendix T21 for the installation dimensions and torques
Material
- Body: nickel-plated brass
Insert: polyamide
Sealing: CR
O-ring: NBR
Protection rating
- IP 68 - 5 bar
Temperature range
- Dynamic: -25°C up to +100°C
- Fixed: -40°C up to +100°C
