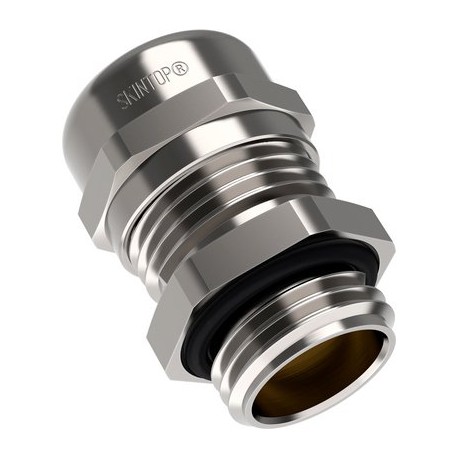

LAPP 52110028 52110028 SKINTOP MS-M ATEX BRUSH plus 63X1,5 LAPP SKINTOP MS-M ATEX BRUSH plus 63X1,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

52110028 SKINTOP MS-M ATEX BRUSH plus 63X1,5 LAPP SKINTOP MS-M ATEX BRUSH plus 63X1,5

52110028

52110028

SKINTOP MS-M ATEX BRUSH plus 63X1,5

LAPP

1 Pcs.

SKINTOP MS-M ATEX BRUSH plus 63X1,5 SKINTOP® MS-M ATEX BRUSH

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for large industrial installations, the Lapp 52110028 cable screw gland incorporates integrated EMC brush technology to terminate shielded cables in hazardous areas.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINTOP® MS-M ATEX BRUSH, brass cable gland, 360° screen contact, anti-static & impact-resistant at cold temperatures, for chemical industry

NEW: Now also available in size M20x1.5

Benefits

  • Faster and less complicated assembling than any other system
  • Optimum, low-resistance 360° screen contact
  • Simple cable adjustment
  • Easy to uninstall
  • Anti-static, safe, and impact-resistant at cold temperatures

Application range

  • For EMC-compliant earthing of the copper braiding
  • Chemical and petrochemical industry
  • Plant engineering
  • Equipment group II / Category 2G+1D
  • Devices, machines and apparatus of enhanced safety protection type "e", dust ignition proof "t"

Product Make-up

  • Metric connection thread acc. to DIN EN 60423
  • Basis for technical information DIN IEC 62444

Note

  • SKINDICHT® SHVE-M 20 x 1.5 ATEX design with EMC earthing sleeve to cover smaller cable clamping ranges
  • SKINDICHT® SHVE-M 20x1,5 ATEX is not IECex certified

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to the instruction leaflet for the installation dimensions and torques

Certifications

  • CE 0637 Ex II 2G
    Ex eb IIC Ex II 1D
    Ex ta IIIC
    IECEx IBE 13.0026X

Material

  • SKINTOP® MS-M ATEX BRUSH
    Body: nickel plated brass
    Insert: special polyamide
    EMV-Brush: brass
    Seal: special elastomer
    O-Ring: special elastomer
    SKINDICHT® SHVE-M ATEX
    Body: nickel plated brass
    Earthing sleeve: brass
    Seal: special elastomer
    O-Ring: special elastomer

Tests

  • DIN EN 60079-0
    DIN EN 60079-7
    DIN EN 60079-31

Protection rating

  • IP 68 - 10 bar

Temperature range

  • SKINTOP® MS-M ATEX BRUSH
    -30°C to +90°C
    SKINDICHT® SHVE-M ATEX
    -20°C to +80°C
