View larger
Images are for illustrative purposes only. Please refer to data sheet for details

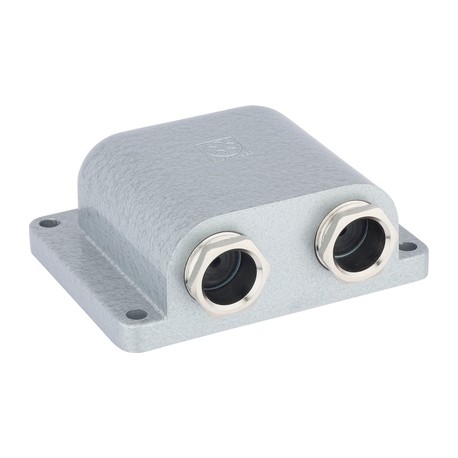

52108041 SKINDICHT SE-M 220 o. E+D LAPP SKINDICHT SE-M 220 o. E+D
52108041
52108041
SKINDICHT SE-M 220 o. E+D
LAPP
1 Pcs.
SKINDICHT SE-M 220 o. E+D
SKINDICHT® SE-M 220/320
Cables > Cable gland
SKINDICHT cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲SKINDICHT® SE-M 220/320, angular cable outlet with 2-3 separate cable outlets, for missing connection thread and high mechanical load
Benefits
- Combination of various conduit glands is possible depending on the type
- Low overall height
- High stability
- Two or three separate cable outlets
Application range
- For high mechanical stress
- When no connection thread is provided
Note
- Type SKINDICHT® SE-M 220/320 without E+D is without incised sealing ring (E) and without compression screw (D)
- Type SKINDICHT® SE-M 220/320 without E+D can be combined with all cable glands (incl. O-ring) such as sealing, strain-relief, anti-kink, conduit-connecting or earthing glands
- The protection class is dependent on the combination with the various special glands. The minimum standard is IP 55.
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Material
- Body: zinc die-casting, hammer tone finish
Compression screw: nickel-plated brass
Incised sealing ring: CR/NBR
Flat sealing: SBR
Protection rating
- IP 55
Temperature range
- -20°C to +80°C
