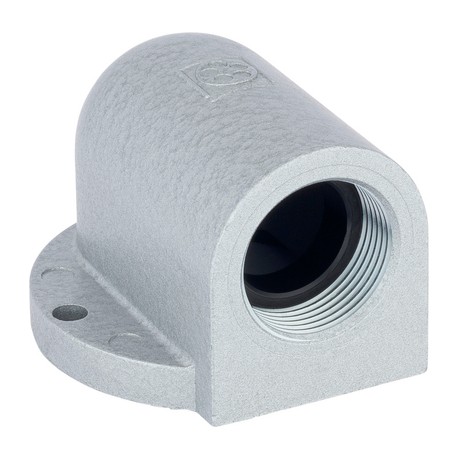

52108021 SKINDICHT SE-M 32x1,5 o. E+D LAPP SKINDICHT SE-M 32x1,5 o. E+D
52108021
52108021
SKINDICHT SE-M 32x1,5 o. E+D
LAPP
1 Pcs.
Cables > Cable gland
SKINDICHT cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Lapp 52108021 SKINDICHT SE-M 32x1,5 o. E+D cable screw gland provides a robust pass-through point for wires entering electrical control assemblies. These components provide reliable mechanical support and environmental containment for internal wiring systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Body: zinc die-casting, grey, hammer tone finish O-ring: NBR
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
More info
▲SKINDICHT® SE-M without E+D, angular cable outlet for missing connection thread and high mechanical load, can be combined
Benefits
- Combination of different conduit glands is possible
- Corrosion-resistant
- Easy to install
- Completely safe cable entry
- Low overall height
Application range
- The flange angle gland can be combined with all glands (including O-ring) e.g. strain relief, bending protection and conduit glands
- For high mechanical stress
- When no connection thread is provided
Product Make-up
- M20 x 1.5 - M25 x 1.5 with 2 screw holesM32 x 1.5 with 4 screw holes
Note
- The protection class is dependent on the combination with the various special glands. The minimum standard is IP 55.
- For combination with other SKINDICHT® or SKINTOP® cable glands, we propose our SKINDICHT® SE-M without incised sealing ring (E) and compression screw (D)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Material
- Body: zinc die-casting, grey,
hammer tone finish
O-ring: NBR
Protection rating
- IP 55
Temperature range
- -20°C to +100°C
