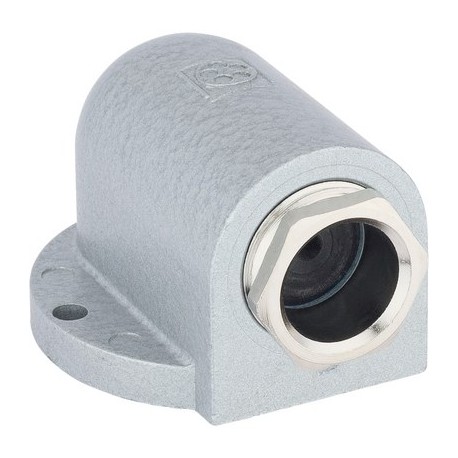

LAPP 52108010 52108010 SKINDICHT SE-M 25x1,5 LAPP SKINDICHT SE-M 25x1,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

52108010 SKINDICHT SE-M 25x1,5 LAPP SKINDICHT SE-M 25x1,5

52108010

52108010

SKINDICHT SE-M 25x1,5

LAPP

5 Pcs.

SKINDICHT SE-M 25x1,5 SKINDICHT® SE-M

Cables > Cable gland
SKINDICHT cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for industrial infrastructure, this cable gland from Lapp facilitates safe and orderly cable routing into control enclosures and machinery housings. Such hardware safeguards internal components by blocking foreign particulate matter and offering dependable strain relief. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINDICHT® SE-M, angular cable outlet, incised sealing ring as a seal, for missing connection thread and high mechanical load

Benefits

  • Sealed by incised sealing ring
  • Corrosion-resistant
  • Easy to install
  • Completely safe cable entry
  • Low overall height

Application range

  • For high mechanical stress
  • When no connection thread is provided

Product Make-up

  • M20 x 1.5 - M25 x 1.5 with 2 screw holes
    M32 x 1.5 with 4 screw holes
  • With incised sealing ring

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Material

  • Body: zinc die-casting, grey,
    hammer tone finish
    Compression screw: nickel-plated brass
    Incised sealing ring: CR/NBR
    O-ring: NBR

Protection rating

  • IP 55

Temperature range

  • -20°C to +80°C
