View larger
Images are for illustrative purposes only. Please refer to data sheet for details
52106240 SKINDICHT KW-M 32x1,5 LAPP SKINDICHT KW-M 32x1,5
52106240
52106240
SKINDICHT KW-M 32x1,5
LAPP
10 Pcs.
SKINDICHT KW-M 32x1,5
SKINDICHT® KW-M
Cables > Cable gland
SKINDICHT cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info

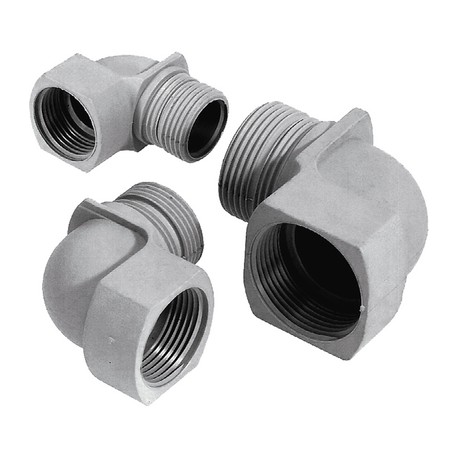

▲SKINDICHT® KW-M, metric, glass fibre-reinforced polyamide angle cable gland to decrease in installation height, space- and weight-saving
Benefits
- Space- and weight-saving application due to thin cable diameters
- Decrease in installation height
Application range
- Angled glands are used in areas where cables have to run in parallel to the housing wall.
- Light and sound applications
- Control cabinet manufacturing
Product Make-up
- Metric connection thread acc. to DIN EN 60423
- Basis for technical information DIN IEC 62444
Note
- Refer to SKINDICHT® O-ring NBR for suitable O-rings
- SKINDICHT® KW-M can be combined with any cable gland, in particular with SKINTOP® ST-M
- Counter nut to be used: SKINTOP® GMP-GL-M
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Colour delivered
- Silver grey (RAL 7001)
Material
- Polyamide, glass fibre-reinforced
Protection rating
- IP 55
Temperature range
- -20°C to +80°C
