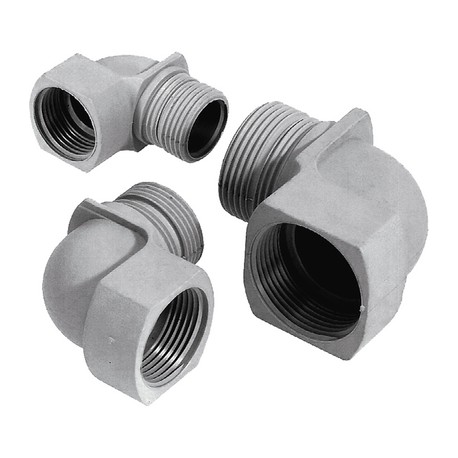

LAPP 52106210 52106210 SKINDICHT KW-M 16x1,5 LAPP SKINDICHT KW-M 16x1,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

52106210 SKINDICHT KW-M 16x1,5 LAPP SKINDICHT KW-M 16x1,5

52106210

52106210

SKINDICHT KW-M 16x1,5

LAPP

25 Pcs.

SKINDICHT KW-M 16x1,5 SKINDICHT® KW-M

Cables > Cable gland
SKINDICHT cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lapp 52106210 SKINDICHT KW-M 16x1,5 cable screw gland facilitates secure cable insertion while protecting electrical wiring from strain and abrasion. Industrial technicians deploy these components in control cabinets to maintain clean cable management and sealing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Counter nut to be used: SKINTOP® GMP-GL-M
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

Benefits

  • Space- and weight-saving application due to thin cable diameters
  • Decrease in installation height

Application range

  • Angled glands are used in areas where cables have to run in parallel to the housing wall.
  • Light and sound applications
  • Control cabinet manufacturing

Product Make-up

  • Metric connection thread acc. to DIN EN 60423
  • Basis for technical information DIN IEC 62444

Note

  • Refer to SKINDICHT® O-ring NBR for suitable O-rings
  • SKINDICHT® KW-M can be combined with any cable gland, in particular with SKINTOP® ST-M
  • Counter nut to be used: SKINTOP® GMP-GL-M

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Colour delivered

  • Silver grey (RAL 7001)

Material

  • Polyamide, glass fibre-reinforced

Protection rating

  • IP 55

Temperature range

  • -20°C to +80°C
