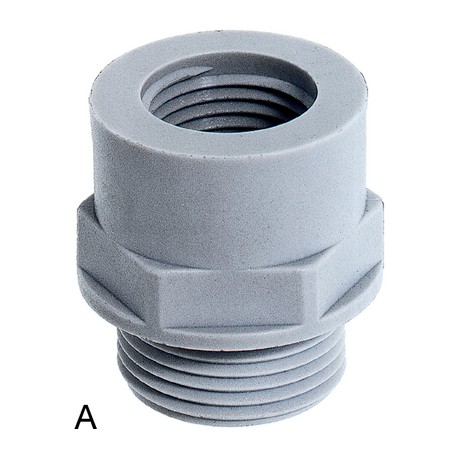

LAPP 52100338 52100338 SKINDICHT A-PG/M29/40x1,5 HIGH LAPP SKINDICHT A-PG/M29/40x1,5 HIGH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

52100338 SKINDICHT A-PG/M29/40x1,5 HIGH LAPP SKINDICHT A-PG/M29/40x1,5 HIGH

52100338

52100338

SKINDICHT A-PG/M29/40x1,5 HIGH

LAPP

10 Pcs.

SKINDICHT A-PG/M29/40x1,5 HIGH SKINDICHT® A-PG/M

Cables > Enlargement/reducing ring
SKINDICHT cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a cable screw gland, the Lapp 52100338 SKINDICHT A-PG/M29/40x1,5 HIGH LAPP SKINDICHT A-PG/M29/40x1,5 HIGH enables seamless transitions between different thread standards on electrical enclosures. These conversion fittings are commonly integrated into control cabinets to ensure proper mounting of diverse cable entry hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINDICHT® A-PG/M Adapter from PG outer thread to M inner thread

Benefits

  • Adapter from a PG outer thread to a metric inner thread

Application range

  • Housings
  • Industrial connectors
  • Machines

Product Make-up

  • PG connection thread

Product Make-up

  • Form A = high
  • Form B = flat

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Colour delivered

  • Light grey (RAL 7035)

Material

  • Polyamide, glass fibre-reinforced

Temperature range

  • -40°C to +100°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
