52100320 SKINDICHT A-PG/M 7/12x1,5 HIGH LAPP SKINDICHT A-PG/M 7/12x1,5 HIGH
52100320
52100320
SKINDICHT A-PG/M 7/12x1,5 HIGH
LAPP
25 Pcs.
Cables > Enlargement/reducing ring
SKINDICHT cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

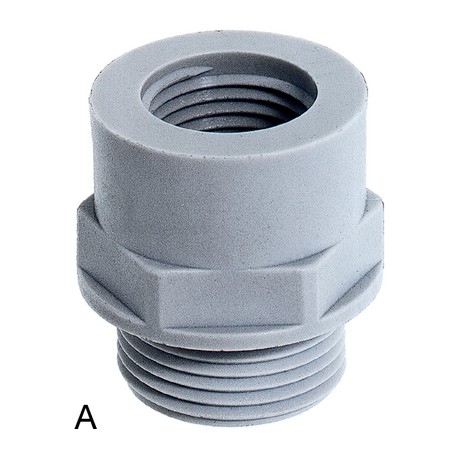

Lapp SKINDICHT A-PG/M 7/12x1,5 HIGH part number 52100320 is a cable screw gland adapter engineered to bridge varying thread configurations on control panel enclosures. Panel builders utilize these parts to manage diverse cable entries efficiently while maintaining proper enclosure integrity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
More info
▲SKINDICHT® A-PG/M Adapter from PG outer thread to M inner thread
Benefits
- Adapter from a PG outer thread to a metric inner thread
Application range
- Housings
- Industrial connectors
- Machines
Product Make-up
- PG connection thread
Product Make-up
- Form A = high
- Form B = flat
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Colour delivered
- Light grey (RAL 7035)
Material
- Polyamide, glass fibre-reinforced
Temperature range
- -40°C to +100°C
