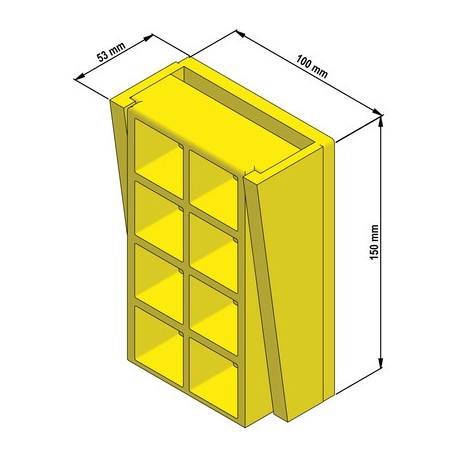

LAPP 52026051 52026051 FKK 08 LAPP CABLE WEDGE CLAMPS FKK 08 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

52026051 FKK 08 LAPP CABLE WEDGE CLAMPS FKK 08

52026051

52026051

FKK 08

LAPP

1 Pcs.

CABLE WEDGE CLAMPS FKK 08 FKK Flat cable wedge clamps

Cables > Pipe saddle clamp
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 52026051 flat cable wedge clamp manages heavy vertical flat-cable runs in demanding industrial handling systems. Wedge clamp assemblies distribute mechanical holding forces evenly along flat profiles to prevent slippage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Clamping force (at overall cable thickness): FKK 08: 2-10mm = 600-800N FKK 07: 2-9mm / 16-17mm = 800N
  • Minimum insert depth for wedge: FKK 08: 60% = 60mm FKK 07: 60% = 90mm
  • Operating temperature: -20°C to +50°C
  • ETIM 5.0 Class-ID: EC002407
  • ETIM 5.0 Class-Description: Accessories for installation rail current/data cable
  • ETIM 6.0 Class-ID: EC002407
  • ETIM 6.0 Class-Description: Accessories for installation rail current/data cable

More info

▲

FKK 08 wedges for fastening flat cables up to 10 mm cable thickness

Suitable mounting plates in the web catalog

Benefits

  • On the shaft side, the mounting plate can be screwed onto the wall or bolted or welded to the rail bracket
  • The mounting plate can be bolted or welded to the lift cage

Application range

  • Mounting flat control cables

Product Make-up

  • The small wedge-shaped cable clamp can hold up to 2 flat cables, the big one up to 3 flat cables

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002407
  • ETIM 5.0 Class-Description: Accessories for installation rail current/data cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002407
  • ETIM 6.0 Class-Description: Accessories for installation rail current/data cable

Info

  • Clamping force (at overall cable thickness):
    FKK 08: 2-10mm = 600-800N
    FKK 07: 2-9mm / 16-17mm = 800N
  • Minimum insert depth for wedge:
    FKK 08: 60% = 60mm
    FKK 07: 60% = 90mm

Material

  • Polyamide 6.6 - halogen-free

Temperature range

  • Operating temperature: -20°C to +50°C
