View larger
Images are for illustrative purposes only. Please refer to data sheet for details

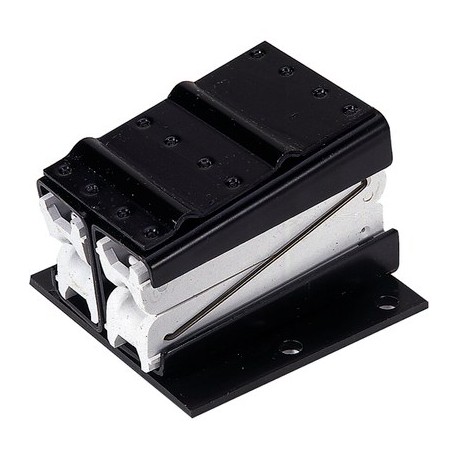

52026010 DKK 18 LAPP CABLE WEDGE CLAMPS DKK 18
52026010
52026010
DKK 18
LAPP
1 Pcs.
CABLE WEDGE CLAMPS DKK 18
DKK double clamp
Cables > Pipe saddle clamp
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲DKK double clamp for fastening cables and conductors
Benefits
- Secure protection without restricting the mobility of the cable cores
- Wide clamping range
Application range
- Simple and reliable mounting clamps for lift control cables
Note
- Installation guidelines for ÖLFLEX® -LIFT RH and RS lift control cables can be found in the appendix T5
- Maximum load for each clamp: 800 N (80 kg)
- Only for vertical assembly
Included
- Impact anchor, screws and safety discs are supplied as installation accessories
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000127
- ETIM 5.0 Class-Description: Fixing clip
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000127
- ETIM 6.0 Class-Description: Saddle
Temperature range
- High mechanical load: +65°C
Low mechaniical load: +100°C
