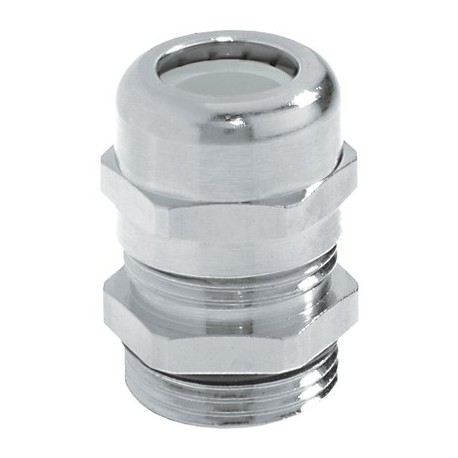

LAPP 52015833 52015833 SKINTOP MSR PG 48 LAPP SKINTOP MSR PG 48 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

52015833 SKINTOP MSR PG 48 LAPP SKINTOP MSR PG 48

52015833

52015833

SKINTOP MSR PG 48

LAPP

5 Pcs.

SKINTOP MSR PG 48 SKINTOP® MSR

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cable screw gland, identified as Lapp part number 52015833, securely fastens large-diameter cables into electrical housings while providing dependable strain relief and environmental sealing. Such industrial fittings prevent pulling forces from reaching terminal connections. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: nickel-plated brass
  • Insert: polyamide
  • Sealing: CR
  • O-ring: NBR
  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINTOP® MSR, brass cable gland with reducing seal insert, in areas where mechanical and chemical stability are critical

Benefits

  • Maximum reliability
  • Optimum strain relief
  • Wide, variable clamping ranges

Application range

  • With reducing seal insert, to seal cables with smaller outer diameters

Product Make-up

  • PG connection thread acc. to DIN 40430

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to Appendix T21 for the installation dimensions and torques

Material

  • Body: nickel-plated brass
    Insert: polyamide
    Sealing: CR
    O-ring: NBR

Protection rating

  • IP 68 - 5 bar

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
