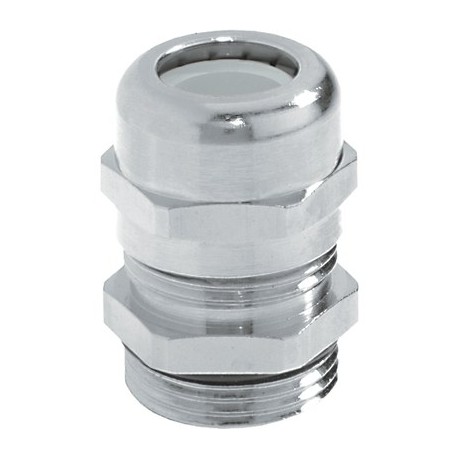

LAPP 52015830 52015830 SKINTOP MSR PG 29 LAPP SKINTOP MSR PG 29 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

52015830 SKINTOP MSR PG 29 LAPP SKINTOP MSR PG 29

52015830

52015830

SKINTOP MSR PG 29

LAPP

25 Pcs.

SKINTOP MSR PG 29 SKINTOP® MSR

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lapp component designated as part number 52015830 functions as a cable gland to anchor, organize, and protect flexible wiring passing through bulkheads or machine chassis. Such devices are standard across factory automation setups to prevent environmental ingress and mechanical pull-out forces on internal terminations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: nickel-plated brass
  • Insert: polyamide
  • Sealing: CR
  • O-ring: NBR
  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINTOP® MSR, brass cable gland with reducing seal insert, in areas where mechanical and chemical stability are critical

Benefits

  • Maximum reliability
  • Optimum strain relief
  • Wide, variable clamping ranges

Application range

  • With reducing seal insert, to seal cables with smaller outer diameters

Product Make-up

  • PG connection thread acc. to DIN 40430

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to Appendix T21 for the installation dimensions and torques

Material

  • Body: nickel-plated brass
    Insert: polyamide
    Sealing: CR
    O-ring: NBR

Protection rating

  • IP 68 - 5 bar

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
