View larger
Images are for illustrative purposes only. Please refer to data sheet for details

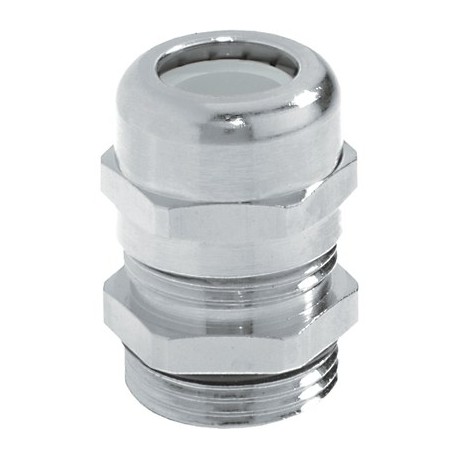

52015800 SKINTOP MSR PG 13,5 LAPP SKINTOP MSR PG 13,5
52015800
52015800
SKINTOP MSR PG 13,5
LAPP
50 Pcs.
SKINTOP MSR PG 13,5
SKINTOP® MSR
Cables > Cable gland
SKINTOP cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲SKINTOP® MSR, brass cable gland with reducing seal insert, in areas where mechanical and chemical stability are critical
Benefits
- Maximum reliability
- Optimum strain relief
- Wide, variable clamping ranges
Application range
- With reducing seal insert, to seal cables with smaller outer diameters
Product Make-up
- PG connection thread acc. to DIN 40430
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Caution
- Refer to Appendix T21 for the installation dimensions and torques
Material
- Body: nickel-plated brass
Insert: polyamide
Sealing: CR
O-ring: NBR
Protection rating
- IP 68 - 5 bar
Temperature range
- Dynamic: -25°C up to +100°C
- Fixed: -40°C up to +100°C
