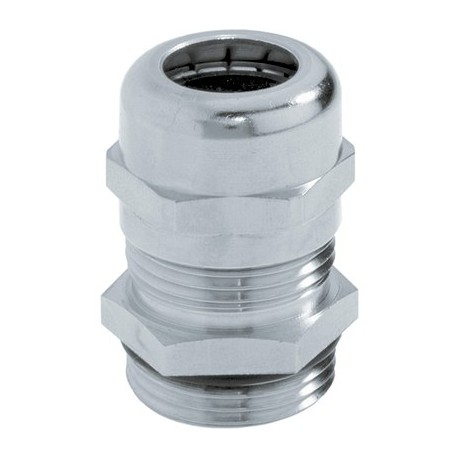

52015767 SKINTOP MS PG 48 LAPP SKINTOP MS PG 48
52015767
52015767
SKINTOP MS PG 48
LAPP
5 Pcs.
Cables > Cable gland
SKINTOP cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built for heavy-duty industrial applications, the Lapp 52015767 SKINTOP MS PG 48 cable screw gland anchors high-capacity cabling securely into panels, junction boxes, and machinery. Robust metal glands offer exceptional mechanical stability and dependable sealing to protect delicate internal electronics from moisture. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Body: nickel-plated brass Insert: polyamide Sealing: CR O-ring: NBR
- Dynamic: -25°C up to +100°C
- Fixed: -40°C up to +100°C
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
More info
▲SKINTOP® MS, brass cable gland with maximum reliability, in areas where mechanical and chemical stability are critical
Benefits
- Maximum reliability
- Optimum strain relief
- Wide, variable clamping ranges
Application range
- In areas where mechanical and chemical stability are critical
- Chemical industry
- Measurement and control technology
- Machine and equipment manufacturing
- Plant engineering
Product Make-up
- PG connection thread acc. to DIN 40430
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Caution
- Refer to Appendix T21 for the installation dimensions and torques
Material
- Body: nickel-plated brass
Insert: polyamide
Sealing: CR
O-ring: NBR
Protection rating
- IP 68 - 5 bar
Temperature range
- Dynamic: -25°C up to +100°C
- Fixed: -40°C up to +100°C
