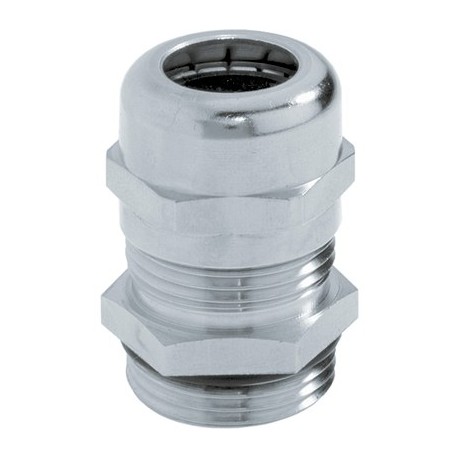

LAPP 52015765 52015765 SKINTOP MS PG 36 LAPP SKINTOP MS PG 36 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

52015765 SKINTOP MS PG 36 LAPP SKINTOP MS PG 36

52015765

52015765

SKINTOP MS PG 36

LAPP

10 Pcs.

SKINTOP MS PG 36 SKINTOP® MS

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed as a Lapp 52015765 SKINTOP MS PG 36 cable screw gland, this hardware protects and secures electrical wiring entering control enclosures. Industrial setups depend on these components to maintain continuous grounding, strain relief, and dust-tight seals. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: nickel-plated brass Insert: polyamide Sealing: CR O-ring: NBR
  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINTOP® MS, brass cable gland with maximum reliability, in areas where mechanical and chemical stability are critical

Benefits

  • Maximum reliability
  • Optimum strain relief
  • Wide, variable clamping ranges

Application range

  • In areas where mechanical and chemical stability are critical
  • Chemical industry
  • Measurement and control technology
  • Machine and equipment manufacturing
  • Plant engineering

Product Make-up

  • PG connection thread acc. to DIN 40430

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to Appendix T21 for the installation dimensions and torques

Material

  • Body: nickel-plated brass
    Insert: polyamide
    Sealing: CR
    O-ring: NBR

Protection rating

  • IP 68 - 5 bar

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
