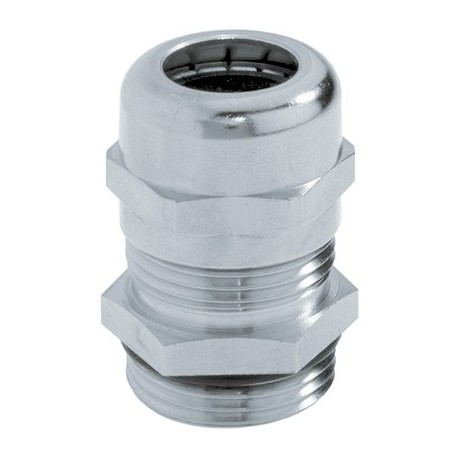

LAPP 52015720 52015720 SKINTOP MS PG 11 LAPP SKINTOP MS PG 11 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

52015720 SKINTOP MS PG 11 LAPP SKINTOP MS PG 11

52015720

52015720

SKINTOP MS PG 11

LAPP

50 Pcs.

SKINTOP MS PG 11 SKINTOP® MS

Cables > Cable gland
SKINTOP cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured from nickel-plated brass, the Lapp 52015720 cable screw gland provides dependable mechanical retention and electrical shielding connections for machine control cabinets. Factory automation specialists utilize these metallic glands to protect critical sensor and power lines from harsh plant floor conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: nickel-plated brass
  • Insert: polyamide
  • Sealing: CR
  • O-ring: NBR
  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C
  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland
  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

More info

▲

SKINTOP® MS, brass cable gland with maximum reliability, in areas where mechanical and chemical stability are critical

Benefits

  • Maximum reliability
  • Optimum strain relief
  • Wide, variable clamping ranges

Application range

  • In areas where mechanical and chemical stability are critical
  • Chemical industry
  • Measurement and control technology
  • Machine and equipment manufacturing
  • Plant engineering

Product Make-up

  • PG connection thread acc. to DIN 40430

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • Refer to Appendix T21 for the installation dimensions and torques

Material

  • Body: nickel-plated brass
    Insert: polyamide
    Sealing: CR
    O-ring: NBR

Protection rating

  • IP 68 - 5 bar

Temperature range

  • Dynamic: -25°C up to +100°C
  • Fixed: -40°C up to +100°C
