View larger
Images are for illustrative purposes only. Please refer to data sheet for details
52005690 SKINDICHT SVFK PG 29 LAPP SKINDICHT SVFK PG 29
52005690
52005690
SKINDICHT SVFK PG 29
LAPP
25 Pcs.
SKINDICHT SVFK PG 29
SKINDICHT® SVFK
Cables > Cable gland
SKINDICHT cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info

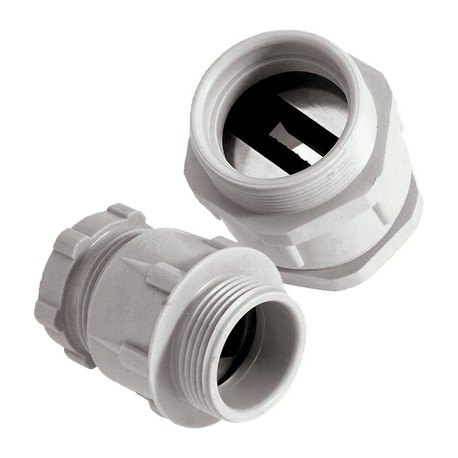

▲SKINDICHT® SVFK, PG plastic flat cable gland, with automatically fitting lateral sealing lips
Benefits
- Economical type
- Lateral sealing lips fit automatically around various cable dimensions
- Cable-specific seal dimensions are no longer necessary
- Tolerance
- Large opening allows clamping of up to two flat cables
Application range
- For inserting flat cables
- Conveyor systems
- Pumps
- Lifts
- Control cabinet manufacturing
Product Make-up
- PG connection thread
Note
- Counter nut to be used: SKINDICHT® GMK
- For suitable flat cables, refer to ÖLFLEX® LIFT F for indoor applications or ÖLFLEX® CRANE F for outdoor applications
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000441
- ETIM 5.0 Class-Description: Cable screw gland
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000441
- ETIM 6.0 Class-Description: Cable screw gland
Caution
- The installation dimensions
can be found in appendix T21
Colour delivered
- Light grey (RAL 7035)
Material
- Body: Polystyrene
Special sealing insert: CR
Protection rating
- IP 54
Temperature range
- -20°C to +60°C
