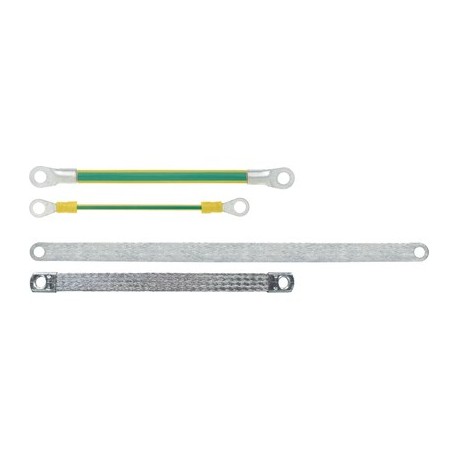

LAPP 4571196 4571196 1x6/M6/200m LAPP Flat Ground Strap/Terminals  1x6/M6/200m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4571196 1x6/M6/200m LAPP Flat Ground Strap/Terminals  1x6/M6/200m

4571196

4571196

1x6/M6/200m

LAPP

25 Pcs.

Flat Ground Strap/Terminals  1x6/M6/200m Ground Straps / Flat Ground Straps

Automation > Earthing strip preassembled
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lapp 4571196 is a flat ground strap with terminals utilized to establish safe electrical potential equalization and protective earthing connections in heavy installations. Flexible grounding straps are commonly installed in control panels, machine frames, and switchgear assemblies to mitigate electromagnetic interference and ensure operator safety. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • UL File number: E501239, see table
  • ETIM 5.0 Class-ID: EC000490
  • ETIM 6.0 Class-ID: EC000490

More info

▲

The flat ground straps/flat strip ground electrodes are ideal for use in control cabinet manufacture.

Application range

  • Control cabinet manufacturing
  • The protective earth safety measure is prescribed by standard
  • Fixed and moving metal parts, such as doors in switch cabinet construction, must be earthed

Product features

  • Fixed lengths for M6 and M8 screws

Norm references / Approvals

  • UL File number: E501239, see table

Product Make-up

  • Ground straps:
    - Strands of bare copper wires
    - PVC-based core insulation
    - Assembled with ring cable lugs
  • Pressure-welded flat ground straps:
    - Strand made of tinned-copper wires
    - Welded ends
  • Flat ground straps with sleeves:
    - Strands made of tinned-copper wires
    - Assembled with pressed contact sleeves

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000490
  • ETIM 5.0 Class-Description: Accessories for earthing and lightning

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000490
  • ETIM 6.0 Class-Description: Accessories for earthing and lightning

Core identification code

  • Assembled ground straps
    Green/Yellow

Conductor stranding

  • Assembled ground straps
    IEC 60 228 Class 6
    Assembled flat ground straps
    IEC 60 228 Class 6, tin-plated
  • Extra-fine wire

Minimum bending radius

  • Assembled ground straps
    7 x outer diameter
    Assembled flat ground straps
    2 x thickness of the strap

Test voltage

  • Assembled ground straps
    2500 V

Temperature range

  • Assembled ground straps
    -30°C to +70°C
    Assembled flat ground straps
    -5°C to +70°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
