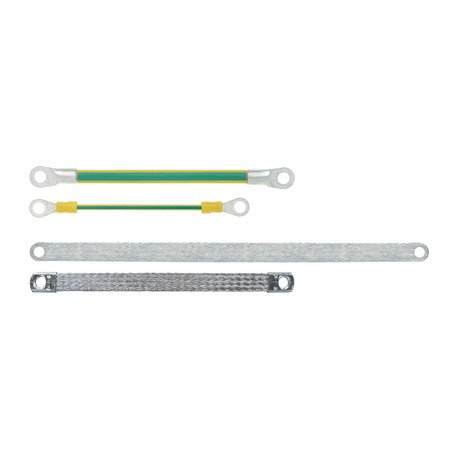

LAPP 4571133 4571133 1x16/M8/200mm LAPP Flat Ground Strap/Press. 1x16/M8/200mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4571133 1x16/M8/200mm LAPP Flat Ground Strap/Press. 1x16/M8/200mm

4571133

4571133

1x16/M8/200mm

LAPP

25 Pcs.

Flat Ground Strap/Press. 1x16/M8/200mm Ground Straps / Flat Ground Straps

Automation > Earthing strip preassembled
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lapp 4571133 is a flat ground strap with pressed sleeves utilized for secure earthing and equipotential bonding in electrical enclosures. Flexible braided copper links are routinely employed to connect doors, panels, and frames to the main protective earth network. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • UL File number: E501239, see table
  • ETIM 5.0 Class-ID: EC000490
  • ETIM 6.0 Class-ID: EC000490

More info

▲

The flat ground straps/flat strip ground electrodes are ideal for use in control cabinet manufacture.

Application range

  • Control cabinet manufacturing
  • The protective earth safety measure is prescribed by standard
  • Fixed and moving metal parts, such as doors in switch cabinet construction, must be earthed

Product features

  • Fixed lengths for M6 and M8 screws

Norm references / Approvals

  • UL File number: E501239, see table

Product Make-up

  • Ground straps:
    - Strands of bare copper wires
    - PVC-based core insulation
    - Assembled with ring cable lugs
  • Pressure-welded flat ground straps:
    - Strand made of tinned-copper wires
    - Welded ends
  • Flat ground straps with sleeves:
    - Strands made of tinned-copper wires
    - Assembled with pressed contact sleeves

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000490
  • ETIM 5.0 Class-Description: Accessories for earthing and lightning

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000490
  • ETIM 6.0 Class-Description: Accessories for earthing and lightning

Core identification code

  • Assembled ground straps
    Green/Yellow

Conductor stranding

  • Assembled ground straps
    IEC 60 228 Class 6
    Assembled flat ground straps
    IEC 60 228 Class 6, tin-plated
  • Extra-fine wire

Minimum bending radius

  • Assembled ground straps
    7 x outer diameter
    Assembled flat ground straps
    2 x thickness of the strap

Test voltage

  • Assembled ground straps
    2500 V

Temperature range

  • Assembled ground straps
    -30°C to +70°C
    Assembled flat ground straps
    -5°C to +70°C
