View larger
Images are for illustrative purposes only. Please refer to data sheet for details

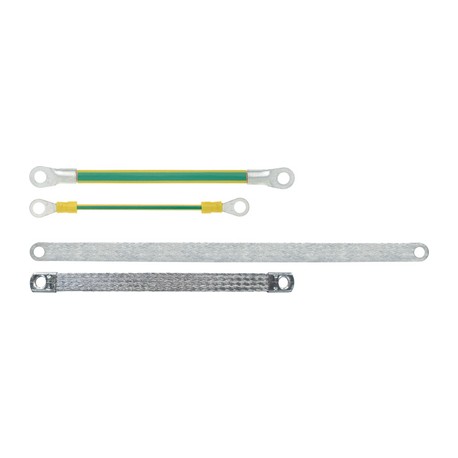

4571123 1X4/M8/300mm GN/YE LAPP Ground Strap 1X4/M8/300mm GN/YE
4571123
4571123
1X4/M8/300mm GN/YE
LAPP
25 Pcs.
Ground Strap 1X4/M8/300mm GN/YE
Ground Straps / Flat Ground Straps
Automation > Earthing strip preassembled
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The flat ground straps/flat strip ground electrodes are ideal for use in control cabinet manufacture.
Application range
- Control cabinet manufacturing
- The protective earth safety measure is prescribed by standard
- Fixed and moving metal parts, such as doors in switch cabinet construction, must be earthed
Product features
- Fixed lengths for M6 and M8 screws
Norm references / Approvals
- UL File number: E501239, see table
Product Make-up
- Ground straps:
- Strands of bare copper wires
- PVC-based core insulation
- Assembled with ring cable lugs - Pressure-welded flat ground straps:
- Strand made of tinned-copper wires
- Welded ends - Flat ground straps with sleeves:
- Strands made of tinned-copper wires
- Assembled with pressed contact sleeves
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000490
- ETIM 5.0 Class-Description: Accessories for earthing and lightning
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000490
- ETIM 6.0 Class-Description: Accessories for earthing and lightning
Core identification code
- Assembled ground straps
Green/Yellow
Conductor stranding
- Assembled ground straps
IEC 60 228 Class 6
Assembled flat ground straps
IEC 60 228 Class 6, tin-plated - Extra-fine wire
Minimum bending radius
- Assembled ground straps
7 x outer diameter
Assembled flat ground straps
2 x thickness of the strap
Test voltage
- Assembled ground straps
2500 V
Temperature range
- Assembled ground straps
-30°C to +70°C
Assembled flat ground straps
-5°C to +70°C
