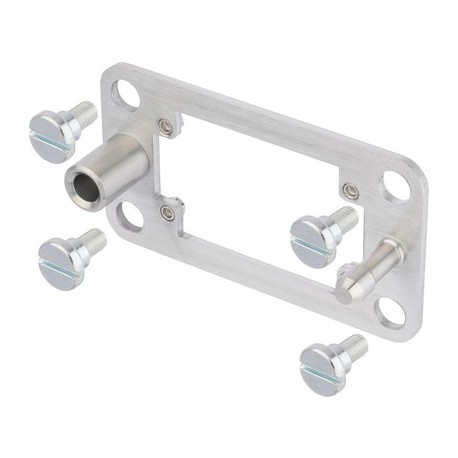

44429443 EPIC H-B 24 DF LAPP EPIC H-B 24 DF
44429443
44429443
EPIC H-B 24 DF
LAPP
2 Pcs.
Connectors > Module carrier frame for industrial connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A contact insert holder for industrial connectors, like the Lapp 44429443 EPIC H-B 24 DF, acts as a floating docking frame designed to ease the connection of large multi-pin assemblies. By accommodating slight axial discrepancies, this part prevents mechanical binding and pin deformation during automated mating cycles. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Scope of delivery per packaging unit: 2 frams with 8 screws
- Pull-In range in x and y axis: + - 1,5mm
- Docking frame: stainless steel Screws: steel zinc plated
- ETIM 5.0 Class-ID: EC002312
- ETIM 5.0 Class-Description: Contact insert holder for industrial connectors
- ETIM 6.0 Class-ID: EC002312
- ETIM 6.0 Class-Description: Contact insert holder for industrial connectors
More info
▲The installation system for control cabinets is available as a set or as single components (upper part for the cable connector, lower part for installation to DIN rail).
- Mounting system for control cabinets
- for float-mounting fixing of the inserts
Application range
- Control cabinet manufacturing
- Wind power plants
Product features
- Scope of delivery per packaging unit: 2 frams with 8 screws
- Special screws adapted to frame
- Pull-In range in x and y axis: + - 1,5mm
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002312
- ETIM 5.0 Class-Description: Contact insert holder for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002312
- ETIM 6.0 Class-Description: Contact insert holder for industrial connectors
Material
- Docking frame: stainless steel
Screws: steel zinc plated
Cycle of mechanical operation
- 500
