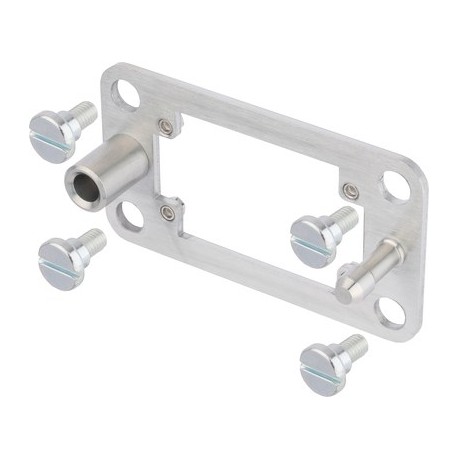

EPIC H-B 10 DF EPIC® Docking frame

Connectors > Module carrier frame for industrial connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A contact insert holder for industrial connectors like the Lapp 44429441 EPIC H-B 10 DF functions as a precise docking mechanism to facilitate blind or automated mating of multi-pin electrical interfaces. Assemblies of this type absorb minor physical misalignments in robotic and modular rack architectures to prevent pin damage. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Scope of delivery per packaging unit: 2 frams with 8 screws
  • Pull-In range in x and y axis: + - 1,5mm
  • Docking frame: stainless steel Screws: steel zinc plated
  • ETIM 5.0 Class-ID: EC002312
  • ETIM 5.0 Class-Description: Contact insert holder for industrial connectors
  • ETIM 6.0 Class-ID: EC002312
  • ETIM 6.0 Class-Description: Contact insert holder for industrial connectors

More info

▲

The installation system for control cabinets is available as a set or as single components (upper part for the cable connector, lower part for installation to DIN rail).

  • Mounting system for control cabinets
  • for float-mounting fixing of the inserts

Application range

  • Control cabinet manufacturing
  • Wind power plants

Product features

  • Scope of delivery per packaging unit: 2 frams with 8 screws
  • Special screws adapted to frame
  • Pull-In range in x and y axis: + - 1,5mm

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002312
  • ETIM 5.0 Class-Description: Contact insert holder for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002312
  • ETIM 6.0 Class-Description: Contact insert holder for industrial connectors

Material

  • Docking frame: stainless steel
    Screws: steel zinc plated

Cycle of mechanical operation

  • 500
