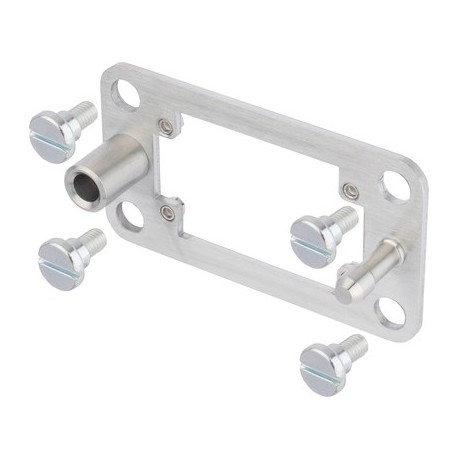

44429440 EPIC H-B 6 DF LAPP EPIC H-B 6 DF
44429440
44429440
EPIC H-B 6 DF
LAPP
2 Pcs.
Connectors > Module carrier frame for industrial connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A contact insert holder for industrial connectors, exemplified by the Lapp 44429440 EPIC H-B 6 DF, guides and secures connector inserts during blind-mate operations. The floating frame design accommodates spatial offsets in automated production lines, protecting sensitive electrical contacts from premature wear. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Scope of delivery per packaging unit: 2 frams with 8 screws
- Pull-In range in x and y axis: + - 1,5mm
- Docking frame: stainless steel Screws: steel zinc plated
- ETIM 5.0 Class-ID: EC002312
- ETIM 5.0 Class-Description: Contact insert holder for industrial connectors
- ETIM 6.0 Class-ID: EC002312
- ETIM 6.0 Class-Description: Contact insert holder for industrial connectors
More info
▲The installation system for control cabinets is available as a set or as single components (upper part for the cable connector, lower part for installation to DIN rail).
- Mounting system for control cabinets
- for float-mounting fixing of the inserts
Application range
- Control cabinet manufacturing
- Wind power plants
Product features
- Scope of delivery per packaging unit: 2 frams with 8 screws
- Special screws adapted to frame
- Pull-In range in x and y axis: + - 1,5mm
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002312
- ETIM 5.0 Class-Description: Contact insert holder for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002312
- ETIM 6.0 Class-Description: Contact insert holder for industrial connectors
Material
- Docking frame: stainless steel
Screws: steel zinc plated
Cycle of mechanical operation
- 500
